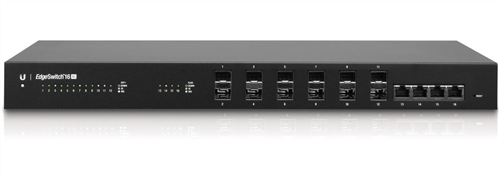

Ubiquiti ES-16-XG EdgeSwitch 16-Port 10Gbps Ethernet Managed Switch (SFP+ and RJ45)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 12 x SFP+ Ports
  • 4 x 10G RJ-45 Ports
  • 1 x RJ-45 Serial Console Port
  • Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.10 Mpps
  • Rackmountable
  • DC Input Option

Build and expand your network with Ubiquiti Networks EdgeSwitch XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Private VLAN, Voice VLAN, Link Aggregation, DHCP Snooping, IGMP Snooping, TACACS+, RADIUS, 802.1X, MAC Filtering, ACL, DiffServ, CoS, Static Routing, Policy-Based Routing, DHCP Server Functionality and much more.


(12) SFP+ Ports
(4) 10G RJ45 Ports
(1) RJ45 Serial Console Port
Non-Blocking Throughput: 160 Gbps
Switching Capacity: 320 Gbps
Forwarding Rate: 238.10 Mpps
Rack Mountable with Rack-Mount Brackets (Included)
DC Input Option (Redundant or Stand-Alone)

Total Non-Blocking Throughput 160 Gbps
Switching Capacity 320 Gbps
Forwarding Rate 238.10 Mpps
Max. Power Consumption 36W (Excludes SFP/SFP+ Modules)
Power Method AC: 100 to 240VAC, DC: 25 to 16VDC
Networking Interfaces (12) 1/10 Gbps SFP+ Ethernet Ports; (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Rackmount , 1U High
Dimensions 443 x 221 x 43 mm
