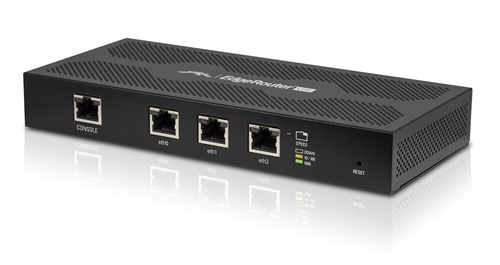

Ubiquiti ERLITE-3 EdgeMAX EdgeRouter with 3x Gigabit Ethernet Ports

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Dual Core 500 MHz Processor
  • 512MB DDR2 RAM Memory
  • 2GB On-Board Flash Storage
  • 1 x RJ-45 Serial Port
  • 3 x 10/100/1000 Ethernet Ports
  • EdgeOS Operating System
  • Reset Button
  • LED Indicators
  • Wall Mountable

The ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router from Ubiquiti Networks is housed in a compact, fanless form factor. It operates quietly and delivers powerful routing, security, and management features you require to efficiently run a network. This EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Each of its Gigabit port functions as an independent interface. You can configure Virtual Local Area Network (VLAN) interfaces to meet network segmentation requirements. You can also configure static routes and dynamic routing protocols, to effectively manage the routes used by the EdgeRouter.
Intuitive User Interface
The EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Accessed via a network port and Web browser, the user-friendly interface provides intuitive management with a virtual view of the ports displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface
Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
For power users, configuration, and monitoring of all advanced features
Direct access to standard Linux tools and shell commands
CLI access through the serial console port, SSH, Telnet, and the graphical user interface
Direct Traffic Flow
Interfaces
Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet the network segmentation requirements
Routing
Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter
Secure Your Network
Firewall Policies
Organize the rules you apply in the order you specify
Firewall Groups
Apply policies to groups filtered by IP address, network address, or port number
NAT Rules
The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules
Manage Your Network
DHCP Server
Set up multiple DHCP servers to assign IP ranges in different subnets on different interfaces. You can control dynamic and static IP addressing for your network devices
Monitoring Tools
Track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor
User Accounts
Manage access to the EdgeRouter Lite using unique administrator and operator accounts. With these capabilities and more, the EdgeRouter Lite provides the centralized control you need, to optimize the performance and reliability of your network
Other Features
EdgeOS
EdgeOS is a sophisticated operating system loaded with robust features, including:
Static routes and support of routing protocols: OSPF, RIP, and BGP Firewall policies and NAT rules
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Comprehensive IPv6 support
Choice of Configuration Methods:
The graphical user interface to visualize the workings of networks or the Command Line Interface (CLI) to use advanced, command-driven configurations

Technical

Processor

Dual core 500 MHz, MIPS64 with hardware acceleration for packet processing

System Memory

512 MB DDR2 RAM

On-Board Flash Storage

2 GB

Operating System

EdgeOS



EdgeOS Software Specifications

Interface/Encapsulation

Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)

Addressing

Static IPv4/IPv6 addressing
DHCP/DHCPv6

Routing

Static routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 support)
IGMP proxy

Security

ACL-based firewall
Zone-based firewall
NAT

VPN

IPSec site-to-site and remote access
OpenVPN site-to-site and remote access
PPTP remote access
L2TP remote access
PPTP client

Services

DHCP/DHCPv6 server
DHCP/DHCPv6 relay
Dynamic DNS
DNS forwarding
VRRP
RADIUS client
Web caching

Quality of Service (QoS)

FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing

Management

Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT discovery protocol
Logging



Layer 3 Forwarding Performance

Packet Size

64 Bytes: 1,000,000 pps
512 Bytes or Larger: 3 Gb/s (line rate)



Networking Interfaces

Serial Console Port

1 x RJ-45 serial port

Data Ports

3 x 10/100/1000 Ethernet ports



LEDs Per Port

Serial Console Port

Power

Data Ports

Speed
Link
Activity



Electrical

Power Input

12 VDC, 1 A power adapter (included)
9 to 24 V (supported voltage range)



General

Button

Reset

Wall Mount

Yes

Operating Temperature

-10 to +45°C

Operating Humidity

90% (non-condensing)

Certifications

CE, FCC, IC

Dimensions

197.52 x 91.00 x 28.00 mm

Weight

289.2 g
