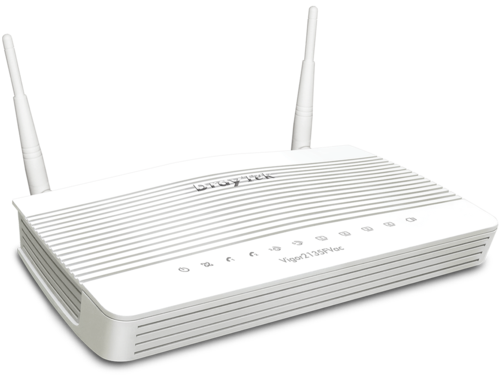

DrayTek DV2135VAC UFB Router/Firewall, QoS, VPN, 4x GigE LAN, 1x GigE WAN, WiFi, VoIP
- Built-in hardware accelerator delivers up to 940 Mbps routing performance
- 802.11ac (AC1300) Wi-Fi up to 867Mbps
The Vigor2135 Series are broadband Firewall and VPN routers.
With built-in hardware accelerator this router delivers up to 940 Mbps routing performance without sacrificing bandwidth control features. Business-grade features include web content filtering, Route Policy, App-based QoS and loads more make this perfect for professional smart homes or small business users who would like to take full control of their own network.
- NAT throughput over 600Mbps
- 802.11ac (AC1300) Wi-Fi up to 400 + 867Mbps speed
- IPsec VPN throughput at 150 Mbps (AES 256 bits)
- Object-based SPI Firewall, Content Security Management (CSM) and QoS
- IPv6 & IPv4
- 2 x VPN tunnels including OpenVPN/ SSL-VPN tunnels
- 2 x USB ports for 3G/4G Backup, FTP server, network printer or thermometer
- 2 x RJ-11 FXS ports for VoIP
- Supports Central AP Management for deployment of 2 Vigor Access Points
- Supports VigorACS 2 Central Management System for remote management
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of the Vigor2135 Series to remote offices and teleworkers over the Internet.
Firewall & Content Filter
Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.
SSL VPN
SSL VPNs work through firewalls providing secure remote access to any network environment.
Hotspot Web Portal
Market your business and communicate with guests by offering hospitality Wi-Fi.
VoIP Friendly
Vigor2135 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.
DrayDDNS
Free DDNS service to access the router using a fixed hostname of your choice.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Central AP Management
Use the Vigor2135 Series router as a wireless controller to maintain and monitor the VigorAPs.
Hardware NAT & Routing with Hardware QoS
The built-in hardware accelerator supports up to 4k NAT and routing connections. With acceleration enabled, the Vigor2135’s throughput can reach up to 940Mbps, ensuring that network functions such as Firewall and QoS perform well above the standards. Other business critical apps, such as VoIP, can be easily prioritized.
| VoIP Gateway | |
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 6 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
| Router Interfaces | |
| WAN Port | 1x Gigabit Ethernet |
| LAN Port | 4x Gigabit Ethernet |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Wi-Fi Antenna | 2x External Dipole |
| Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz | |
| 2.4G WLAN | 802.11n 2×2 MIMO 400Mbps |
| 5G WLAN | 802.11ac Wave 2 2×2 MU-MIMO 867Mbps |
| Performance | |
| NAT Throughput | 600 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps |
| IPsec VPN Performance | 150 Mbps (AES 256 bits) |
| SSL VPN Performance | 100 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels (including OpenVPN/ SSL-VPN) | 2 |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 3G/4G/LTE WAN with USB modem | |
| WAN Failover | |
| LAN Management | |
| Connection Detection | ARP, Strict ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 4 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | (Requires external storage) |
| VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA1, SHA256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defence | |
| Spoofing Defence | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| APP Qos | |
| Wireless LAN | |
| Number of SSID | 4 per radio band |
| Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | PIN, PBC |
| WDS Repeater | Repeater (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | |
| MU-MIMO | 5GHz Only |
| WMM | |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2132 Series, Vigor2133 Series |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 2 VigorAP |
| Physical | |
| Power Supply | DC 12V @ 1.5A-2A |
| Max. Power Consumption | 18 watts |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 440g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
