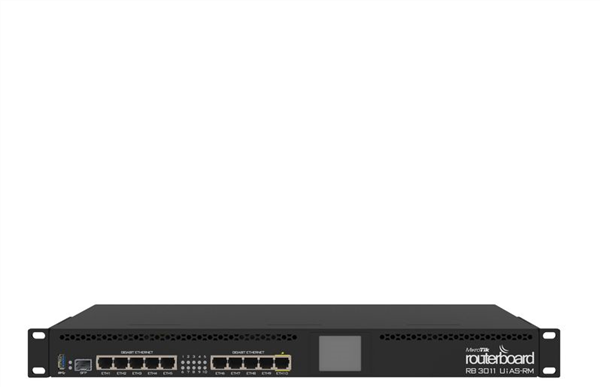

MikroTik RB3011UIAS-RM RouterBOARD 11 Port Gigabit Router, 10x 1Gbps Ethernet Ports, 1x SFP, PoE in/out
The RB3011UiAS-RM is a new multi port device, running an ARM architecture CPU for higher performance.
It has 10 Gigabit ports divided in two switch groups, an SFP cage and a SuperSpeed, full size USB 3.0 port for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with:
* 1U rackmount enclosure
* Touchscreen LCD panel
* Serial console port
* PoE output functionality on Ethernet port 10.
| Product code | RB3011UiAS-RM |
| CPU nominal frequency | 1.4 GHz |
| CPU core count | 2 |
| Size of RAM | 1 GB |
| 10/100/1000 Ethernet ports | 10 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| PoE out | Yes |
| Supported input voltage | 10 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 443x92x44mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30 + 70 C |
| License level | 5 |
| CPU | IPQ-8064-0-519FCBGA-TR-01-0 |
| Max Power consumption | 10W |
| SFP ports | 1 |
| USB slot type | USB 3.0 type A |
| Serial port | RJ45 |
| Storage type | NAND |
| Storage size | 128 MB |
