MikroTik RB2011UIAS-RM RouterBOARD, 5 Gigabit LAN ports, 5 Fast Ethernet LAN ports, 1 SFP Port

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

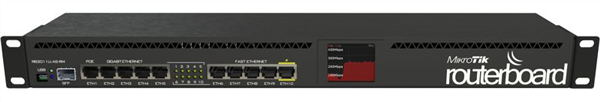

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.



CPU nominal frequency

600 MHz

SFP DDMI

Yes

CPU core count

1

Size of RAM

128 MB

10/100 Ethernet ports

5

10/100/1000 Ethernet ports

5

Number of USB ports

1

Power Jack

1

PoE in

Yes

PoE out

Yes

Supported input voltage

8 V - 30 V

Voltage Monitor

Yes

PCB temperature monitor

Yes

Dimensions

214mm x 86mm for PCB

Operating System

RouterOS

Tested ambient temperature

-35C to +65C

License level

5

CPU

AR9344

SFP ports

1

USB slot type

microUSB type AB

Serial port

RJ45

Storage type

NAND

Storage size

128 MB
