MikroTik RB1100AHX2 13-Port Gigabit Router, 1U rack mount

1U rackmount, 13x Gigabit Ethernet, 1066MHz Dual Core CPU, 2GB RAM, RouterOS L6

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

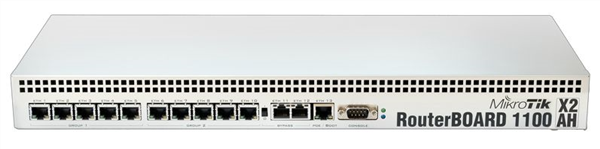

RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!

It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.

The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.

CPU : P202ASSE2KFB
CPU core count : 2
CPU nominal frequency : 1066 MHz
Dimensions : 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
License level : 6
Operating System : RouterOS
Size of RAM : 2 GB
Storage size : 128 MB
Storage type : NAND
Tested ambient temperature : -30C to +60C

Powering Details
PoE in : Passive PoE
PoE in input Voltage : 10-28 V
Number of AC inputs : 1
AC input range : 100-240
Number of DC inputs : 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage : 7-28 V

Ethernet
10/100/1000 Ethernet ports " 13

Peripherals
Memory card type : microSD
Memory Cards : 1
Serial port : RS232

Other Details
CPU temperature monitor : Yes
Current Monitor : Yes
PCB temperature monitor : Yes
Voltage Monitor : Yes

Included parts:
IEC cord
Rack ears (aluminum)
Screw and feet kit (K10)
