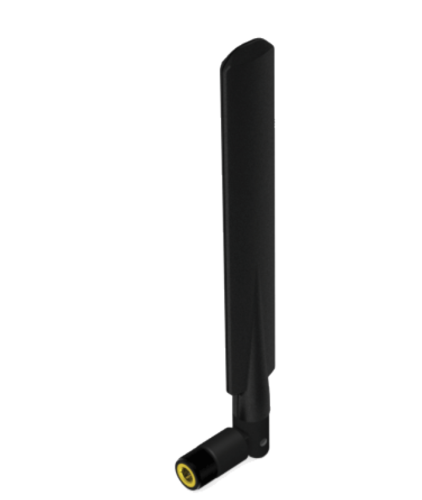

Panorama Antennas PWB-BC3G-38-RSMAP 2G/3G/4G/5G LTE Paddle Antenna with right angle SMA

2G/3G/4G/5G LTE Paddle Antenna with right angle SMA

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

4G LTE Paddle Antenna w/ right angle SMA

Compatible with all Cradlepoint and Robustel routers

The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G/5G and 3.4-3.8GHz 5G frequecies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz.

Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.

Electrical Data
LTE Frequencies 698-960/1710-3800MHz
Typical VSWR < 3:1
Peak Gain (dBi) 2
Max Input Power (W) 10
Pattern Omni-directional
Mechanical Data
Available Colours Black; White
Length (mm) 41
Width (mm) 7
Height (mm) 163
Operating Temperature -40 / + 80°C
Mounting Data
Mounting Type Articluated Hinge
Mounting Method SMA Plug
