Panorama LP-IN2443-W-LC 4-in-1 4x4 MiMo 5G LTE Dome Kit w/ 5m cables (white)

Compatible with Cradlepoint IBR1700 and R1900 series routers

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

4-in-1 4x4 MiMo 5G LTE Dome Kit w/ 5m cables (white)

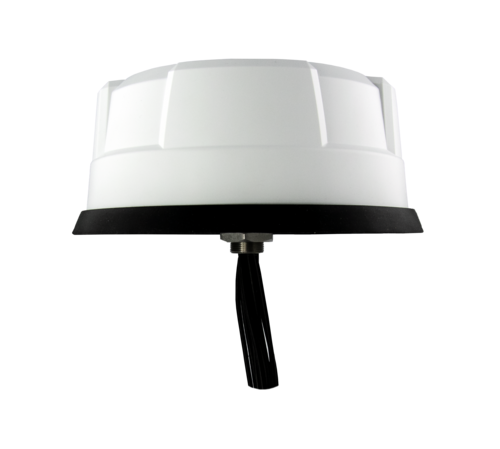

The LP-IN2443 is a high performance 4x4 MiMo LTE antenna covering 617-960/1710-6000MHz. It has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a compact low profile housing.

This antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables  (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in white and meets IK10 for vandal resistance and IP69K for ingress protection.

LP-IN2443 is supplied as a complete plug and play kit with integrated 5m (16’) ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G.

Electrical Data
LTE Frequencies 617-960/1710-6000MHz
Peak Gain (dBi) 9
LTE MiMo 4x4
Max Input Power (W) 10
Pattern Omni-directional
Ground Plane Independent Yes
Mechanical Data
Available Colours White
Height (mm) 80
Diameter (mm) 180
Operating Temperature -40 / +85°C
Mounting Data
Mounting Type Panel Mount
Mounting Method 18mm (3/4") Mounting Bush
Approvals Data
IP Rating IP69K
