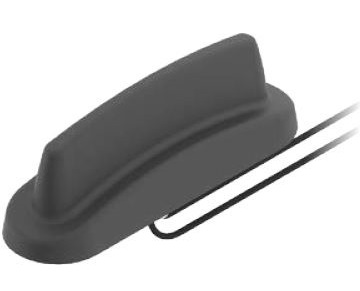

Panorama Antennas LPAM-BC3G-26-1SP 2-in-1 4G LTE and GPS Panel Mount Antenna, 1m cable, SMA

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Compatible with a wide range of cellular routers including Cradlepoint IBR200 / IBR600 / IBR900 series.

The LPAM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna functions for IOT and M2M applications.

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Electrical Data
LTE Frequencies 698-960/1710-3800MHz
Global Positioning GPS / GNSS 1562-1612
LTE MiMo 2x2
Max Input Power (W) 20
Pattern Omni-directional
Ground Plane Independent Yes
Global Positioning Data
Frequency Range (MHz) 1562-1612
LNA Gain (dB) 26dB
Mechanical Data
Available Colours Black
Length (mm) 150
Width (mm) 45
Height (mm) 49
Operating Temperature -30 / + 70°C
Mounting Data
Mounting Type Panel Mount /
Ceiling / Wallmount
Mounting Method 18mm Mounting Bush
