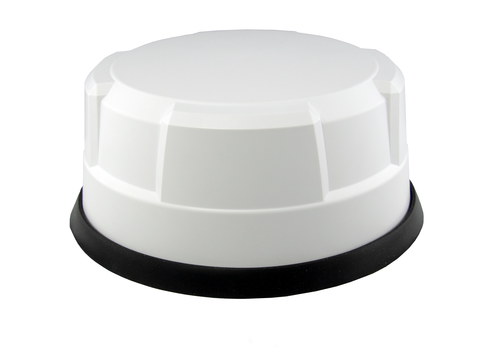

Panorama Antennas LG-IN2447-W-LC 11-in-1 4x4 MiMo 5G LTE + GNSS + 6x6 MiMo WiFi Dome Kit w/ 5m cables (white)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

11-in-1 4x4 MiMo 5G LTE + GNSS + 6x6 MiMo WiFi Dome Kit w/ 5m cables (white)

Compatible with Cradlepoint IBR1700 series routers

The LG-IN2447 is a high performance 4x4 MiMo LTE, 6x6 MiMo Dual Band WiFi  and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
The LG-IN2447 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 6x6 MiMo WiFi 2.4/5.0GHz in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables  (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2447 is supplied as a complete plug and play kit with integrated 5m (16’) ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.

Electrical Data
LTE Frequencies 617-960/1710-6000MHz
Global Positioning GPS / GNSS 1562-1612
Wifi Frequencies 2.4 / 4.9-6.0GHz
Peak Gain (dBi) 9
LTE MiMo 4x4
WiFi MiMo 6x6
Max Input Power (W) 10
Pattern Omni-directional
Ground Plane Independent Yes
Mechanical Data
Available Colours Black or White
Height (mm) 80
Diameter (mm) 180
Operating Temperature -40 / +85°C
Mounting Data
Mounting Type Panel Mount
Mounting Method 18mm (3/4") Mounting Bush
Approvals Data
IP Rating IP69K
