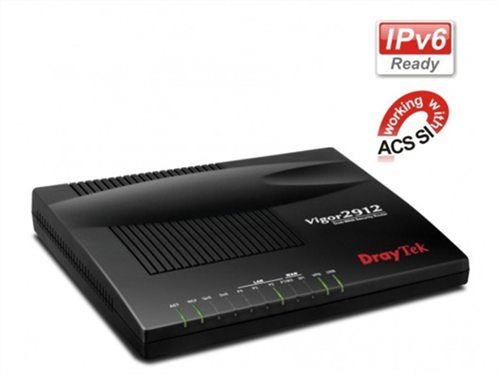

DrayTek DV2912 Dual WAN Router, Firewall, VPN, Bandwidth Management
- Dual-WAN Load-balance and Redundancy
- VPN for Secure Remote Access
- Firewall & Security
- Bandwidth Management
The Vigor2912 Series Routers are designed for office applications. This VPN/firewall router replaces the simple router offered by ISPs.
The dual WAN load-balancing and redundancy ensures your office will stay connected. And network security is covered by a robust firewall and (optional) Web Content Filtering. Aa well as that, all your bandwidth can be smoothly allocated to essential applications (e.g. VoIP) with its advanced QoS feature.
VPN tunnels cover the needs of inter-office / remote access applications via multiple protocols.
-
UFB (Ultra-Fast Broadband) Ready
-
Dual WAN load-balance and redundancy via 2x Fast Ethernet WAN ports
-
WAN Port : 1x 10/100Base-TX, RJ-45
-
LAN/WAN Switchable Port : 1x 10/100Base-TX, RJ-45
-
LAN Port : 3x 10/100Base-TX, RJ-45
-
USB Port : 1x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or environment thermometer
-
Max. Number of NAT Sessions : 30,000
-
Max. Concurrent VPN Tunnels : 16
-
Max. Concurrent OpenVPN + SSL VPN : 8
-
Object-based SPI Firewall, Content Security Management (CSM) and QoS
-
16 x VPN tunnels with hardware accelerator & VPN Fail-Over
-
Supports Smart Monitor Traffic Analyzer (up to 30-nodes)
-
Supports TR-069 for VigorACS SI Central Management
|
Capacity |
|
|
Max. Number of NAT Sessions |
30,000 |
|
Max. Concurrent VPN Tunnels |
16 |
|
Max. Concurrent OpenVPN + SSL VPN |
8 |
|
Internet Connection |
|
|
IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
|
IPv6 |
PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
|
Multi-VLAN/PVC |
Yes |
|
WAN Failover |
Yes |
|
WAN Active on Demand |
Link Failure, Traffic Threshold |
|
Connection Detection |
ARP, Ping |
|
Dynamic DNS |
Yes |
|
DrayDDNS |
Yes |
|
LAN Management |
|
|
VLAN |
802.1q Tag-based, Port-based |
|
Max. Number of VLAN |
8 |
|
DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
|
Port Mirroring |
Yes |
|
Local DNS Server |
Yes |
|
Hotspot Web Portal |
Yes |
|
Networking |
|
|
Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
|
Policy-based Routing |
Yes |
|
DNS Security (DNSSEC) |
Yes |
|
Multicast |
IGMP Proxy, IGMP Snooping, Bonjour |
|
SMB File Sharing |
(Requires external storage) |
|
VPN |
|
|
LAN-to-LAN |
Yes |
|
Teleworker-to-LAN |
Yes |
|
Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2 |
|
User Authentication |
Local, RADIUS, LDAP, mOTP |
|
IKE Authentication |
Pre-Shared Key, X.509 |
|
IPsec Authentication |
SHA1, MD5 |
|
Single-Armed VPN |
Yes |
|
NAT-Traversal (NAT-T) |
Yes |
|
Firewall & Content Filtering |
|
|
NAT |
Port Redirection, Port Triggering, DMZ Host, UPnP |
|
ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
|
VPN Pass-Through |
PPTP, L2TP, IPsec |
|
IP-based Firewall Policy |
Yes |
|
Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
|
DoS Attack Defense |
Yes |
|
Bandwidth Management |
|
|
IP-based Bandwidth Limit |
Yes |
|
IP-based Session Limit |
Yes |
|
QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port |
|
VoIP Prioritization |
Yes |
|
Management |
|
|
Local Service |
HTTP, HTTPS, Telnet, SSH, TR-069 |
|
Config File Export & Import |
Yes |
|
Config File Compatibility |
Vigor2910 |
|
Firmware Upgrade |
TFTP, HTTP, TR-069 |
|
2-Level Administration Privilege |
Yes |
|
Access Control |
Access List, Brute Force Protection |
|
Syslog |
Yes |
|
SNMP |
v2, v2c, v3 |
|
Notification Alert |
SMS, E-mail |
|
Managed by VigorACS |
Yes |
|
Physical |
|
|
Power Supply |
DC 12V @ 1.5A |
|
Dimension |
220mm x 160mm x 36mm |
|
Operating Temperature |
0 to 45°C |
|
Storage Temperature |
-25 to 70°C |
|
Operating Humidity (non-condensing) |
10 to 90% |
|
Certificate |
|
Notes :
-
All specifications are subject to change without notice.
-
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
|
