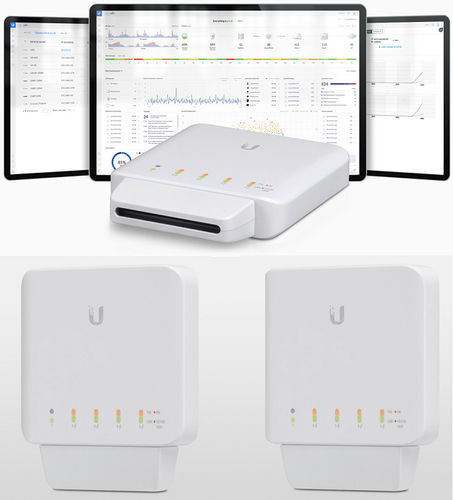

3 Pack of UniFi Indoor/Outdoor 5-Port Gigabit Switches

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.



Dimensions

122.5 x 107.1 x 28.0 mm

Weight

230 g

Networking Interfaces

(5) 10/100/1000 Mbps RJ45 Ports

Management Interface

Ethernet In-Band

Power Method (Port 1)
PoE Mode 1:
PoE Mode 2:
PoE Mode 3:


802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
54V / 1.1A PoE Adapter

PoE Out (Ports 2-5)

802.3af (Pins 1, 2+; 3, 6-)

Max. Power Consumption (Excluding PoE Output)

7W

Supported Voltage Range
802.3af Mode
802.3at/bt Mode


44V - 57V
50V - 57V

LEDs
System
RJ45 Data Ports


Status
PoE; Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 16kV Contact

Operating Temperature

-40 to 55° C
