• Expansion
  • Dual-port External SAS 12Gb/s storage expansion card

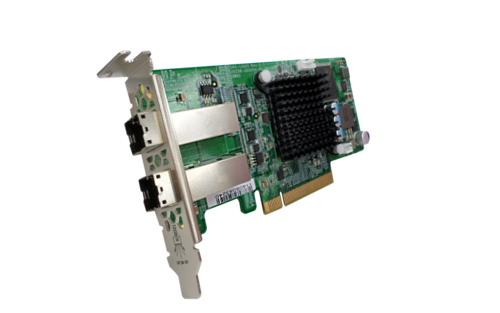

QNAP QXP-820S-B3408 Dual-port External SAS 12Gb/s storage expansion card

Dual-port External SAS 12Gb/s storage expansion card

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Dual-port External SAS 12Gb/s storage expansion card

  • SAS controller: Broadcom SAS3408 Tri-mode
  • Tri-mode: 12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s
  • Connector: Two (x4) SFF-8644
  • PCIe and Lanes: PCIe Gen 3 x8
  • Bracket: Low-profile (default). Desktop and Full-height brackets are also included.
  • Supported cables**: CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644

*A wide port with four SAS signals.
**Only passive cables are supported. Passive cables are sold separately.





Replaces SAS-12G2E card.
