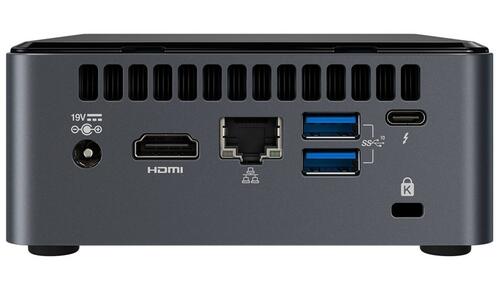

Intel BXNUC10I3FNH4 NUC I3-10110U Mini PC Barebones Kit, Core i3 2.1GHZ, WiFi, Bluetooth

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Product Collection : Intel® NUC Kit with 10th Generation Intel® Core™ Processors
  • Code Name : Products formerly Frost Canyon
  • Status : Launched
  • Launch Date : Q4'19
  • Supported Operating Systems : Windows 10, 64-bit*
  • Board Number : NUC10i3FNB
  • Board Form Factor : UCFF (4" x 4")
  • Socket : Soldered-down BGA
  • Internal Drive Form Factor : M.2 and 2.5" Drive
  • # of Internal Drives Supported : 2
  • Off Roadmap : No
  • Lithography : 14 nm
  • TDP : 25 W
  • DC Input Voltage Supported : 19 VDC
  • Processor Included : Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)
  • Intel® vPro™ Platform Eligibility ‡ : No
  • # of Cores : 2
  • # of Threads : 4
  • Processor Base Frequency : 2.10 GHz
  • Max Turbo Frequency : 4.10 GHz
  • Warranty Period : 3 yrs

Memory & Storage

  • Max Memory Size (dependent on memory type) : 64 GB
  • Memory Types : DDR4-2666 1.2V SO-DIMM
  • Max # of Memory Channels : 2
  • Max Memory Bandwidth : 42.6 GB/s
  • Max # of DIMMs : 2
  • ECC Memory Supported ‡ : No

Processor Graphics

  • Processor Graphics ‡ : Intel® UHD Graphics
  • Integrated Graphics ‡ : Yes
  • Graphics Output : HDMI 2.0a; USB-C (DP1.2)
  • # of Displays Supported ‡ : 3

Expansion Options

  • PCI Express Revision : Gen3
  • PCI Express Configurations ‡ : M.2 slot with PCIe X4 lanes
  • Removable Memory Card Slot : SDXC with UHS-II support
  • M.2 Card Slot (storage) : 22x42/80

I/O Specifications

  • # of USB Ports : 7
  • USB Configuration : 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers
  • USB Revision : 2.0, 3.1 Gen2
  • USB 2.0 Configuration (External + Internal) : 0 + 2
  • USB 3.0 Configuration (External + Internal) : 2B 2F + 0
  • Total # of SATA Ports : 2
  • Max # of SATA 6.0 Gb/s Ports : 2
  • RAID Configuration : 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
  • Audio (back channel + front channel) : 7.1 digital (HDMI mDP); L+R mic (F)
  • Integrated LAN : Intel® Ethernet Connection I219-V
  • Integrated Wireless‡ : Intel® Wireless-AX MAC
  • Integrated Bluetooth : Yes
  • Consumer Infrared Rx Sensor : Yes
  • Additional Headers : CEC, 2x USB2.0, FRONT_PANEL
  • # of Thunderbolt™ 3 Ports : 1

Package Specifications

  • Chassis Dimensions : 117 x 112 x 51mm

Advanced Technologies

  • Intel® Optane™ Memory Supported ‡ : Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
  • Intel® vPro™ Platform Eligibility ‡ : No
  • TPM : No
  • Intel® HD Audio Technology : Yes
  • Intel® Rapid Storage Technology : Yes
  • Intel® Virtualization Technology (VT-x) ‡ : Yes
  • Intel® Platform Trust Technology (Intel® PTT) : Yes

Security & Reliability

  • Intel® AES New Instructions : Yes
