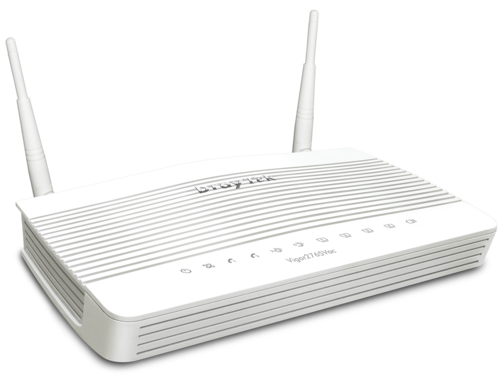

DrayTek DV2135AC UFB Router/Firewall, QoS, VPN, 4x GigE LAN, 1x GigE WAN, 802.11ac WiFi

  • Built-in hardware accelerator delivers up to 940 Mbps routing performance
  • 802.11ac (AC1300) Wi-Fi up to 867Mbps

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Vigor2135 Series are broadband Firewall and VPN routers.

With built-in hardware accelerator this router delivers up to 940 Mbps routing performance without sacrificing bandwidth control features. Business-grade features include web content filtering, Route Policy, App-based QoS and loads more make this perfect for professional smart homes or small business users who would like to take full control of their own network.

  • NAT throughput over 600Mbps
  • 802.11ac (AC1300) Wi-Fi up to 400 + 867Mbps speed
  • IPsec VPN throughput at 150 Mbps (AES 256 bits)
  • Object-based SPI Firewall, Content Security Management (CSM) and QoS
  • IPv6 & IPv4
  • 2 x VPN tunnels including OpenVPN/ SSL-VPN tunnels
  • 2 x USB ports for 3G/4G Backup, FTP server, network printer or thermometer
  • Supports Central AP Management for deployment of 2 Vigor Access Points
  • Supports VigorACS 2 Central Management System for remote management

VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of the Vigor2135 Series to remote offices and teleworkers over the Internet.

Firewall & Content Filter
Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.

SSL VPN
SSL VPNs work through firewalls providing secure remote access to any network environment.

Hotspot Web Portal
Market your business and communicate with guests by offering hospitality Wi-Fi.

VoIP Friendly
Vigor2135 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.

DrayDDNS
Free DDNS service to access the router using a fixed hostname of your choice.

Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

Central AP Management
Use the Vigor2135 Series router as a wireless controller to maintain and monitor the VigorAPs.

Hardware NAT & Routing with Hardware QoS
The built-in hardware accelerator supports up to 4k NAT and routing connections. With acceleration enabled, the Vigor2135’s throughput can reach up to 940Mbps, ensuring that network functions such as Firewall and QoS perform well above the standards. Other business critical apps, such as VoIP, can be easily prioritized.

Interface
WAN Port 1x Gigabit Ethernet
LAN Port 4x Gigabit Ethernet
USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
Wi-Fi Antenna 2x External Dipole
  Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
2.4G WLAN 802.11n 2×2 MIMO 400Mbps
5G WLAN 802.11ac Wave 2 2×2 MU-MIMO 867Mbps
Performance
NAT Throughput 600 Mbps
NAT Throughput w/ Hardware Acceleration 940 Mbps
IPsec VPN Performance 150 Mbps (AES 256 bits)
SSL VPN Performance 100 Mbps
Max. Number of NAT Sessions 50,000
Max. Concurrent VPN Tunnels (including OpenVPN/ SSL-VPN) 2
Internet Connection
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
3G/4G/LTE WAN with USB modem
WAN Failover
LAN Management
Connection Detection ARP, Strict ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 4
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
DNS Security (DNSSEC)
Multicast IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
SMB File Sharing  (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
User Authentication Local, RADIUS, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA1, SHA256, MD5
Encryption MPPE, DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category (subscription required)
DoS Attack Defence
Spoofing Defence
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
APP Qos
Wireless LAN

Number of SSID 4 per radio band
Security Mode WEP, WPA, WPA2, Mixed(WPA+WPA2)
Authentication Pre-Shared Key, 802.1x
WPS PIN, PBC
WDS Repeater Repeater (5GHz only)
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness
Band Steering
MU-MIMO  5GHz Only
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069
Config File Export & Import
Config File Compatibility Vigor2132 Series, Vigor2133 Series
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Managed by VigorACS
Central AP Management 2 VigorAP
Physical
Power Supply DC 12V @ 1.5A-2A
Max. Power Consumption 18 watts
Dimension 207mm x 131mm x 42mm
Weight 440g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%

Note :

  • All specifications are subject to change without notice.
  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
