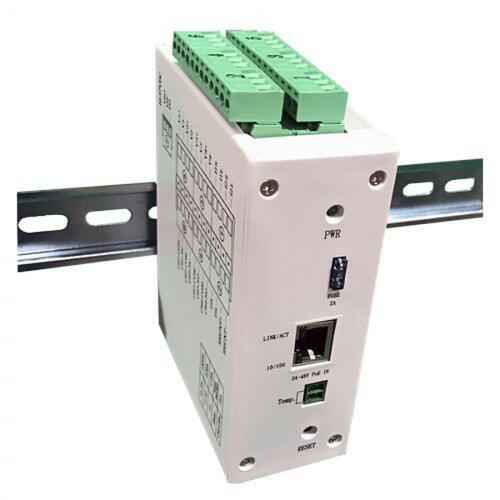

Tycon Power TPDIN-MONITOR-WEB WEB2 Remote Monitor

TPDIN2 PowerSens Remote Data Logging DIN Rail Mount Power Monitor and Control, Automatic or Manual Control, Industrial Strength

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

• Monitors 4 Voltages up to 80VDC, 4 Currents and 2 Temperatures ; Provides 4x 10A Relays (2x NO and 2x NC Type) for Equipment Control
• 2x 20A Current Input, 1x +/-10A Current Input and 1x Shunt Current Inputs
• Powered by PoE or 10-57V Wire Terminal, 1.5W Power Consumption (all relays off)
• Comprehensive Relay Control and Email Alerts; Voltage, Current, Temperature, Ping, Time

The TPDIN Based Remote Monitor and Control System is a versatile tool which enables the equipment designer and installer to remotely monitor their equipment and site. The unit can be accessed via the network (web and SNMP). The system has built-in surge protection to prevent damage from electrical surges.

The graphical interface allows the user to control relays via a single mouse click and monitor all the measurement parameters real-time via any web browser. The free Tycon APP for IOS and Android facilitates remote access.

The system allows control of the relays based on Voltage, Current, Temperature, Time or Ping Watchdog.

The relays have a special one-click cycle feature with programmable cycle times which can be used to turn a device off and then back on after the predetermined time with a single button click. This is useful for rebooting a device like a PoE Switch by power cycling it, thereby rebooting all devices attached to the switch.

One of the current ports supports external current shunts so very large currents can be monitored.

Connections are via removable wire terminal connectors. This allows for easy troubleshooting and maintenance because the unit can be removed from the system without disturbing the system wiring.

User defined labels for each parameter makes sure that when viewing the web interface or graphs that users can quickly identify the parameter they are concerned about.

There are 4 independent email alerts that can be set.

• Remotely Measure 4 Voltages, 4 Currents, 2 Temperatures
• Remotely Control Equipment with 4 Relays: 2 NC and 2 NO
• Automatic Control of Relays by Volts, Amps, Temp, Ping, Time
• Access via Web or SNMP. Automatically Send Email Alerts
• On-Board Datalogger and History Graphs
• Accepts power via PoE (802.3af or Passive) or wire terminal
• DIN Rail Mounting
