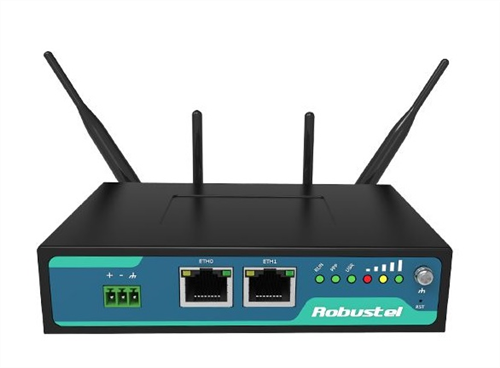

Robustel R2000-4L-B28-W LTE Band28 Router, Dual SIM, 2xEth, 9-36VDC power, WiFi LTE with Band 28 and 3G fallback

(antennas and power supply purchased separately)

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Robustel GoRugged R2000 Dual SIM Industrial Cellular VPN Router for GPRS/EDGE/UMTS/HSPA+/4G LTE Networks

* Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G.
* Various interfaces: 2xLAN/ 1xLAN, 1xWAN.
* WAN: static, PPPOE and DHCP client.
* Multiple links backup and ICMP detection.
* VPN tunnel: IPSec/ OpenVPN/GRE.
* Auto reboot via SMS/ Timing.
* Flexible Management methods: Web/SMS/CLI.
* Firmware upgrade via Web/CLI/SMS.
* Advanced Firewall: filtering, port mapping, DMZ.
* Support DDNS.
* Support VRRP.
* Support SNMP report events which include system startup, system reboot, system time update etc.
* Wide range input voltages from 9 to 26 VDC.
* The metal enclosure can be mounted on a DIN-rail, on the wall or be put on desktop.
* Built-in Watchdog, Timer

Frequency bands:
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B20
LTE TDD: B38, B39, B40, B41
UMTS/DC-HSPA+/HSPA+/HSPA: 2100/1900/850/900/1800 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz

*new LTE Band 28 (700 MHz)

Operating Environment : -20 to +65°C/ 5 to 95% RH

Packing List
* Robustel R2000 Router
* 3-pin pluggable terminal block for power connector x 1
* CD with user guide x 1

Optional accessories (can be purchased separately):

Cellular SMA antenna (3G/4G)
RP-SMA Wi-Fi antenna (Stubby antenna or Magnet antenna optional)
Wall Mounting Kit
35mm Din-Rail mounting kit
AC/DC Power Supply Adapter (12VDC, 1.5A)

Cellular Interface
* Standards: GSM/GPRS/EDGE/UMTS/HSPA+/FDD LTE
* FDD LTE: max. 150/50 Mbps (DL/UL)
* TDD LTE: max.112/10 Mbps (DL/UL)
* DC-HSPA+: 42/5.76 Mbps (DL/UL)
* HSPA+: max. 21.6/5.76 Mbps (DL/UL)
* EDGE: 236.8 kbps (DL/UL)
* GPRS: 85.6 kbps (DL/UL)
* SIM: 2 x (3V & 1.8V)
* Antenna Interface: SMA Female(1xMAIN and 1xAUX)
Ethernet Interface
* Number of Ports: 2xLAN or 1 x LAN, 1xWAN (10/100Mbps)
* Magnet Isolation Protection: 1.5KV
WLAN Interface
* Standards: 802.11b/g/n, support AP and Client mode
* Data speed: 2*2 MIMO,300Mbps
* Frequency Band: 2.412 - 2.485 GHz
* Security: WEP, WPA, WPA2
* Encryption: 64/128 AES, TKIP
* Antenna Interface: RP-SMA Female
System
* Reset button
* LED Indicators: RUN, PPP, USR, 3 x RSSI
CPU & Memory
* CPU: 535MHz
* SDRAM: 64MB
* FLASH: 16MB

Power Supply and Consumption
* Power Supply Interface: 3.5mm terminal block
* Input Voltage: 9 to 26 VDC
* Power Consumption: Idle: 100 mA @ 12 V
Data Link: 500 mA (peak) @ 12 V
Physical Characteristics
* Housing & Weight: Metal, 300g
* Dimension: (L x W x H): 127.5mm x 82.5mm x 29.5mm
* Installation: 35mm Din-Rail or wall mounting or desktop

* Network protocols: PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, Telnet, SNMP, etc.
* VPN tunnel: IPSec/OpenVPN/GRE
* Firewall: SPI, anti-DoS, Filter, Access Control
* Management: Web, SMS
