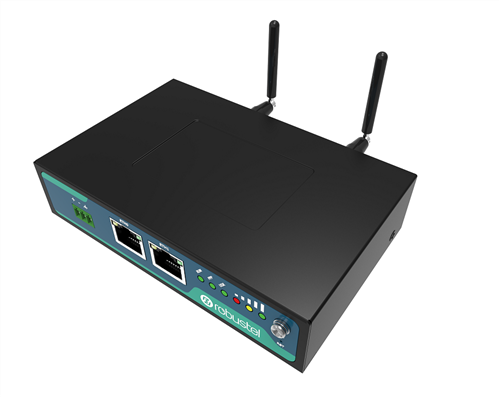

Robustel R2000-4L 2G/3G/4G LTE Router, Dual SIM, 2 x Ethernet

Includes antenna and power supply.

Certified Microsoft Azure IoT Device.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Robustel GoRugged R2000 Dual SIM Industrial Cellular VPN Router for GPRS/EDGE/UMTS/HSPA+/4G LTE Networks

* Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G.
* Various interfaces: 2xLAN/ 1xLAN, 1xWAN.
* WAN: static, PPPOE and DHCP client.
* Multiple links backup and ICMP detection.
* VPN tunnel: IPSec/ OpenVPN/GRE.
* Auto reboot via SMS/ Timing.
* Flexible Management methods: Web/SMS/CLI.
* Firmware upgrade via Web/CLI/SMS.
* Advanced Firewall: filtering, port mapping, DMZ.
* Support DDNS.
* Support VRRP.
* Support SNMP report events which include system startup, system reboot, system time update etc.
* Wide range input voltages from 9 to 26 VDC.
* The metal enclosure can be mounted on a DIN-rail, on the wall or be put on desktop.
* Built-in Watchdog, Timer

Frequency bands:
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B20
LTE TDD: B38, B39, B40, B41
UMTS/DC-HSPA+/HSPA+/HSPA: 2100/1900/850/900/1800 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz

Operating Environment : -20 to +65°C/ 5 to 95% RH

Packing List
* Robustel R2000 Router
* 3-pin pluggable terminal block for power connector x 1
* CD with user guide x 1
* AC/DC Power Supply Adapter (12VDC, 1.5A) x 1
* Cellular SMA antenna (3G/4G) x 1

Optional accessories (can be purchased separately):

Wall Mounting Kit
35mm Din-Rail mounting kit





A014707

Standards GSM/GPRS/EDGE/UMTS/HSPA/FDD LTE/TDD LTE
HSPA+ 850/900/1800/1900/2100 MHz, DL/UL 21/5.76 Mbps
FDD/TDD LTE FDD LTE: B1, B2, B3, B4, B5, B7, B8, B20,
TDD LTE: B38, B39. B40, B41, fallback to 3G/2G

2 x SIM (3V & 1.8V)

Antenna Interface : SMA Female

Ethernet Interface: 2 LANs or 1 LAN 1 WAN, 10/100 Mbps

1.5KV Magnet Isolation Protection

System : LED Indicators RUN, PPP, USR, 3 x RSSI

Built-in  Watchdog, Timer

Software
Network protocols PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, Telnet, etc
VPN tunnel IPSec/OpenVPN/GRE
Firewall SPI, anti-DoS, Filter, Access Control
Management Web, CLI, SMS, RobustLink
RobustLink Centralized M2M management platform

Power Supply and Consumption
Power Supply Interface 3.5mm terminal block with lock
Input Voltage 9 to 26 VDC
Power Consumption Idle: 100 mA @ 12 V
Data Link: 500 mA (peak) @ 12 V

Physical Characteristics
Housing & Weight Metal, 300g
Dimension (L x W x H): 127.5 x 82.5 x 29.5 mm
Installation 35mm Din-Rail or wall mounting or desktop

  • Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G.
  • Various interfaces: 2xLAN/ 1xLAN, 1xWAN.
  • WAN: static, PPPOE and DHCP client.
  • Multiple links backup and ICMP detection.
  • VPN tunnel: IPsec/ OpenVPN/GRE.
  • Auto reboot via SMS/ Timing.
  • Flexible Management methods: Web/SMS/CLI.
  • Firmware upgrade via Web/CLI/SMS.
  • Advanced Firewall: filtering, port mapping, DMZ.
  • Support DDNS.
  • Support VRRP.
  • Wide range input voltages from 9 to 26 VDC.
  • The metal enclosure can be mounted on a DIN-rail, on the wall or be put on desktop.
  • Built-in Watchdog, Timer
