DrayTek DAP902 866mbps 802.11ac Dual-Band Wireless Access Point, Gigabit Ethernet LAN 802.11ac Wireless Access Point

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

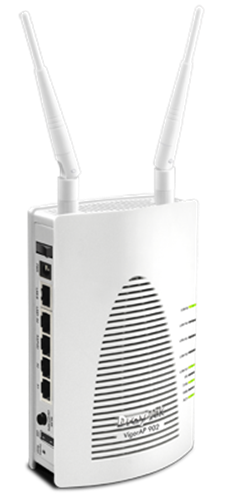

VigorAP 902 (AC 1200)
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Concurrent Dual Band 802.11ac AP
  • 802.3af Power over Ethernet (PoE-PD)
  • Wi-Fi multimedia (WMM) quality of service features
  • Up to 1200Mbps Wi-Fi throughput
  • 4 SSIDs for each band (2.4G/5G)
  • Support 5 Gigabit LAN ports
  • 2 VLAN groups managing both wired (Ports) & wireless clients (SSIDs)
  • TR-069 for LAN-A: firmware upgrade, configuration backup, and restore
  • Unified devices management portal offer single-panel view across AP Management

The DrayTek VigorAP 902 is a wireless access point which can be operated in standalone or centrally managed/monitored mode (with the use of a central DrayTek management product - see later).  The VigorAP 902 is a high specification professional access point providing reliable and flexible coverage to all manner of applications.  A vast array of security and management features helps the AP to improve and protect flexibility and integrity of your wireless LAN.  The VigorAP 902 is ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS repeater features.

Simultaneous Dual-Band Operation & Extended 5Ghz Bands
The VigorAP 902 supports simultaneous operation of the common 2.4Ghz band and faster 5Ghz band. The 5Ghz band is far less congested so if your PCs or other devices support the 5Ghz band, you can use that. The 5Ghz band is used for 802.11ac (or optionally 802.11n and 802.11a). The VigorAP 902 operates both bands at the same time, allowing your devices to use either band and each has its own bandwidth so overall wireless capacity is also increased. The 5Ghz interface supports the full range of extended domestic 5Ghz channels, thank to its support for DFS/TPC; you can select all 5Ghz channels up to channel 140, as opposed to just the 4 'Band A-Lower' channels (which provides only two non-overlapping channels).

  • Business-class wireless access point
  • 802.11ac (866mbps) & 802.11n (300mbps)
  • Simultaneous dual-band (2.4/5Ghz)
  • Support for 5Ghz Extended Channels (100-140)
  • Gigabit Ethernet Switch (4+1 Ports)
  • Centrally managed or standalone operation
  • Central Management supports mobility, load-balancing, monitoring, status, upgrade and configuration
  • Local temperature monitoring/logging
  • (Optional thermometer accessory required)
  • Can be powered by supplied PSU or standard 802.3af PoE (Power-over-Ethernet)
  • WPA2 Wireless Encryption
  • Repeater/Bridge/Access Point & WDS
  • Time-Scheduled Operation
  • Bandwidth management per SSID
  • 802.1q VLAN Tagging
  • Client Isolation & Multiple SSIDs
  • MAC Address Filtering
  • Radius / WPA & 802.1x User Authentication
  • Built-in Site Surveyor
  • Wall Mountable
  • Physical Interfaces/Controls:
    • LAN A : 4 x Gigabit Ethernet
      Port 3 accepts 802.3af PoE Power
    • LAN B : 1 x Gigabit Ethernet
    • USB 2.0 Interface (for printer or thermometer)
    • Power On/Off Button
    • Wireless On / Off / WDS Button
      WDS Operation/button can be disabled
    • Factory Reset Button (recessed)
    • DC Power Socket
    • Two Antennae (Removable, 2dB, both TX/RX dual-band)
    • Antenna connectors: RSMA Female
  • Wireless LAN Compatibility:
    • IEEE 802.11ac / a / b / g / n
    • Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation
    • Extended 5Ghz Band - Channels 36-140
    • DFS/TPC Support
    • Total wireless bandwidth (capacity) 1200Mb/s
      • 802.11n : 300Mb/s
      • 802.11ac : 867Mb/s
  • Security Features:
    • Wireless Encryption : WPA2 (802.11i) Encryption
      Also supports WPA/WEP (Not recommended)
    • User Authentication : 802.1x (using built-in or external Radius Server) (MD5/PEAP Modes)
    • PMK Caching & Pre-authentication
    • Wireless Client Isolation
    • Hidden SSIDs (Selectable)
    • WPS - WiFi Protected Setup
    • MAC Address Filtering (ACL)
  • Operational Modes (2.4Ghz band)
    • 802.11b, 802.11g, 802.11n
    • Access Point
    • Station Infrastructure
    • AP Bridge Point-to-Point
    • AP Bridge Point-to-Multipoint
    • AP Bridge WDS
    • Universal Repeater
  • Operational Modes (5.8Ghz band)
    • 802.11ac / 802.11n / 802.11a
    • Channels 36-140 with DFS/TPC
    • Access Point
    • Universal Repeater
  • Wireless Control Features:
    • Wireless Client Status List in WUI
    • Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
    • WMM (Wireless MultiMedia)
    • MAC Cloning
    • Built-in DHCP server & client
    • 802.1q VLAN
    • VLAN Grouping & mapping for LAN A & LAN B
    • Airtime Fairness
    • Band Steering
  • Management:
    • Web Interface (HTTP/HTTPS)
    • TR-069 Control (For Vigor-ACS-SI or other TR-069 platform)
    • CLI (Command Line Interface) - Telnet
    • Firmware upgrade by TR-069/HTTP
    • SNMP V2 / 2c / 3*
    • Central AP Management (from compatible DrayTek router/controller)
    • Management VLAN for LAN A & LAN B
  • Power, environmental & Physical:
    • Temperature Operation : 0° C to 40° C
    • Humidity Requirements: 10% to 90 % (Non-condensing)
    • Physical Dimensions: mm
    • Weight : 0.4kg (main unit, including Aerials)
    • Wall Mountable
    • Pack Contents : VigorAP 902 main unit, two aerials, PSU (220-240VAC), quick start guide, manual on CD-Rom
    • Power : 12VDC via AC/DC PSU (supplied) or 802.3af PoE
    • Warranty : 2 Years RTB
