Ubiquiti AMO-5G10 Airmax 5GHz 10dBi Dual Polarity Omni-Directional Antenna

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Ubiquiti Airmax 5GHz 10dBi Dual Polarity Omni-Directional Antenna, designed to seamlessly integrate with Rocket APs*

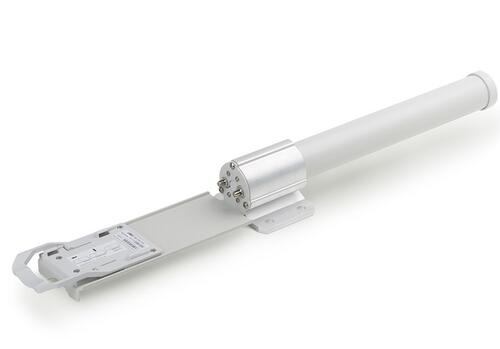

The Ubiquiti airMAX Omni Antenna is a Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (sold separately).

Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation. This seamless integration gives network architects unparalleled flexibility and convenience.

The Rocket M combines the “brains” in one robust unit; pair Rocket M with airMAX Omni Antenna to create powerful 2x2 MIMO PtMP Applications.

This seamless integration gives network architects unparalleled flexibility and convenience. The Ubiquiti Rocket M radios and airMAX Omni Antennas have been designed to seamlessly work together.

Installing Rocket M on AirMax Omni Antennas requires no special tools, you simply snap it into place with the mount provided with the Dual Polarity Antennas.


*These antennas also work with other 2*2 MIMO wireless devices.

Frequency Range 5.45 - 5.85 GHz
Gain 10 dBi
Polarisation Dual-Linear
Cross Polarisation 25 dB min
Max VSWR 1.6:1
Elevation Beamwidth 12°
Downtilt 4°
Connector Type (2) RP-SMA Female
Dimensions 582 X 90 X 65
Wind Loading 125 mph
Pole Mount Diameter 38 - 75mm












AKA ANT-150
