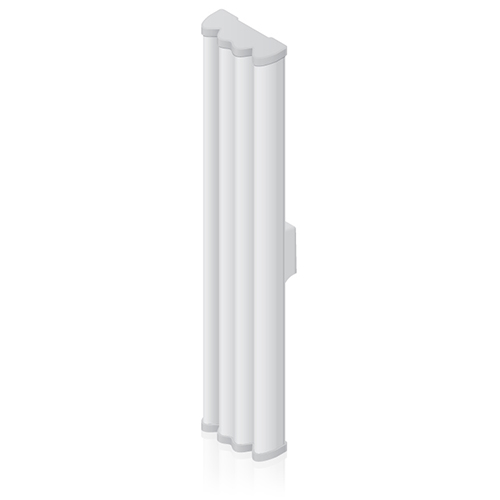

Ubiquiti AM-5G-20-90 AirMax 5G20-90 Sector 5GHz 20dBi 90 degree Dual Polarization Antenna

AirMax 5G20-90 Sector 5GHz 20dBi 90 degree Dual Polarization Antenna

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 5 GHz Operating Frequency
  • 20 dBi Gain
  • For Outdoor Use
  • Compatible with Rocket M BaseStations

The AM-5G20-90 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 20 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna

In the Box
Ubiquiti Networks AM-5G20-90 AirMAX 5 GHz 2x2 MIMO Sector Antenna
Universal Pole Mount
RocketM Bracket
Weatherproof RF Jumpers











ANT-125

AM-5G20-90

Frequency Range : 5.15 to 5.85 GHz
Gain : 19.4 to 20.3 dBi
Hpol Beamwidth : 91° (6 dB)
Vpol Beamwidth : 85° (6 dB)
Beamwidth : Electrical: 4°
Electrical Downtilt : 2°
VSWR (Voltage Standing Wave Ratio) : 1.5:1
Wind Survivability : 200 kmph
Wind Loading : 26 lbf @ 160 kmph
Polarization : Dual-Linear
Cross-pol : Isolation 28 dB Min
ETSI Specification : EN 302 326 DN2
Dimensions : 700 x 135 x 70 mm
Weight : 5.9 kg
