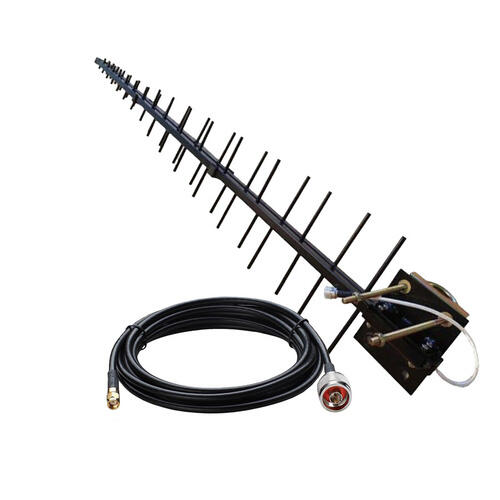

Blackhawk ANT-BH-YG-LOG-LPDA-10 LPDA Antenna 698-4000 MHz 12/14 dBi, with 10m cable

  • Includes a 10m LMR240 SMA-M To N-M LEAD
  • 5G Ready

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Operating on all 3G, 4G and 5G frequencies in New Zealand, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.

This is the ideal external antenna for Cel-Fi repeater systems.

The Blackhawk LPDA Antenna provides an ideal solution for3G/ 4G voice and data applications.

With the rollout of new 4G and even 5G frequencies, traditional Yagi antennas just haven’t been able to keep up.

LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand.

This one antenna can be used on any mobile phone network in New Zealand, in any area without worrying about compatibility.

A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wide-band performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length.

The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.


  • 12 dBi gain across lower bands 698-960 MHz

  • 14 dBi gain across bands 1710-2700 MHz

  • 12 dBi gain across upper bands 3300-4000 MHz

  • Ruggedised construction for New Zealand conditions

  • Fully welded, powder coat aluminium design

  • Stainless steel mounting clamp included

  • 30 cm tail with pre-terminated N Female connector

  • Ideal for high-speed 3G and 4G LTE applications.


Frequency Range (MHz)

698-960 / 1710-2700/ 3300-4000

Input Impedance

50 Ω

Peak Gain

12 / 14 dBi


≤2.5:1 /≤1.8:1


Vertical, linear

Horizontal Beam-width

55 / 42°

Vertical Beam-width

46 / 34°

Maximum Input Power

50 W


Input Connector

N Female


30 cm cable tail

Lightning Protection

DC Ground

Radiator Material

Fully welded aluminium, black powder coat


Stainless Steel, pole mountØ30-50 mm


1240 x 200 x 60 mm

Packing Dimensions

1290 x 210 x 90 mm


2.2 kg

Rated Wind Velocity

192 km/h

Operating Temperature

-40 to +65°C
