  • UniFi 802.11ac Long Range Wireless AP, no PoE, no retail box

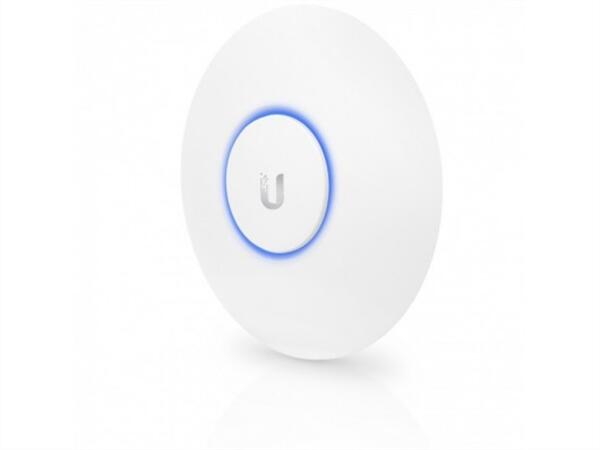

Ubiquiti UAP-AC-LR-NP UniFi 802.11ac Long Range Wireless AP, no PoE, no retail box

UniFi 802.11ac Long Range Wireless AP, no PoE, no retail box

UAP-AC-LR model without a retail box, and without PoE injector.

Designed for installations where PoE is already available.

Or it can be ordered with an optional PoE injector.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Ubiquiti UniFi AP AC Long Range 250mW Dual Band 802.11ac 3x3 + 2x2 MIMO 450Mbps (2.4GHz) + 867Mbps (5GHz)

  • 802.11 a/b/g/n/ac Wi-Fi Standards
  • Range of up to 182m
  • 1 x 10/100/1000 Ethernet Ports
  • Up to 450 Mbps on 2.4 Ghz Wireless
  • Up to 867 Mbps on 5 Ghz Wireless
  • UniFi Controller Software
  • Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet (24V, 12W). PoE Injector not included
  • Also supports 802.3af/at PoE

The UAP-AC-LR 802.11ac Long Range Access Point from Ubiquiti Networks is ideal for long-range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.



Networking Interface

1 x 10/100/1000 Ethernet ports

Button

Reset

Antennas

1 x Dual-band antenna, tri-polarity
2.4 GHz: 3 dBi
5 GHz: 6 dBi

Wi-Fi Standards

802.11 a/b/g/n/ac

Power Method

Passive Power over Ethernet (24 V), (Pairs 4, 5+; 7, 8 Return)

*new. Now also supports 802.3af/at PoE

Power Supply

24 V, 0.5A or 802.3af/at Gigabit PoE adapter (not included)

Maximum Power Consumption

6.5 W

Maximum TX Power

2.4 GHz: 24 dBm
5 GHz: 22 dBm

BSSID

Up to 4 per radio

Power Save

Supported

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certifications

CE, FCC, IC

Mounting

Wall/ceiling (kits included)



Advanced Traffic Management

VLAN

802.1Q

Advanced QoS

Per user rate limiting

Guest Traffic Isolation

Supported

WMM (Wi-Fi Multimedia)

Voice, video, best effort, and background

Concurrent Clients

200+



Supported Data Rates (Mb/s)

Standards

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mb/s

802.11n
6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40)

802.11ac
6.5 to 867 Mb/s (MCS0 - MCS9 NSS 1/2/, VHT 20/40/80)

802.11b
1, 2, 5.5, 11 Mb/s

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mb/s



Physical Characteristics

Operating Temperature

-10 to 70°C

Operating Humidity

5 to 95% non-condensing

Dimensions

17.57 x 17.57 x 4.32 cm

Weight

Without Mounting Kit: 241.0 g
With Mounting Kit: 314.7 g
