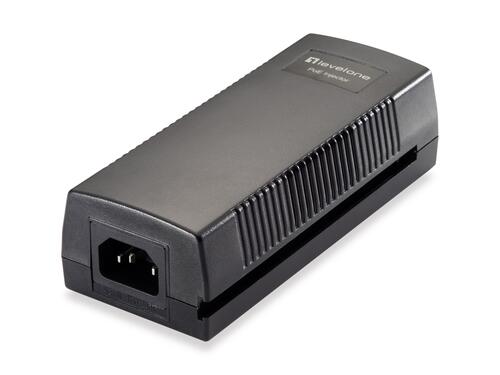

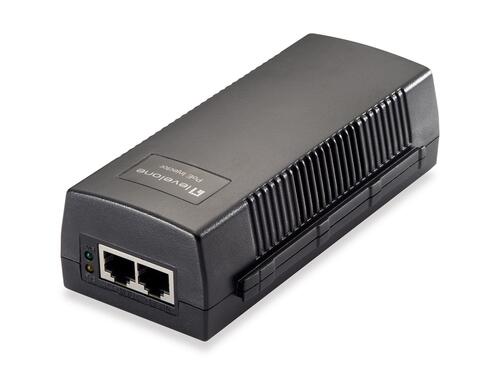

LevelOne POI-3014 PoE Injector, Gigabit Ethernet, PoE+, 30W

PoE Injector, Gigabit Ethernet, PoE+, 30W

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  •  Delivers power and data to equipment via a single Ethernet cable
  •  Works with 802.3af and 802.3at devices
  •  Total PoE power budget: 30W
  •  Gigabit Ethernet
  •  Data and power feeding up to 100m
  •  Unique interlocking feature for easy installation
  •  Surge protected to enhance safety
  •  Simple Plug and Play installation
  •  Compact, lightweight design

Standards & Protocols:
IEEE 802.3 10Base-T, Ethernet
IEEE 802.3u 100Base-TX, Fast Ethernet
IEEE 802.3ab 1000Base-T, Gigabit Ethernet
Ports:

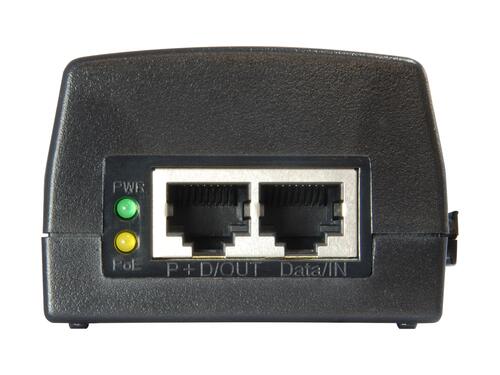

1 x 10/100/1000Base-T RJ-45 Input Port
1 x 10/100/1000Base-T RJ-45 PoE Output Port
Indicator: Power, PoE
Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Power Input:
PoE Power Output: DC 52V / 30W
Unit Output Voltage: DC 52V / 0.6A

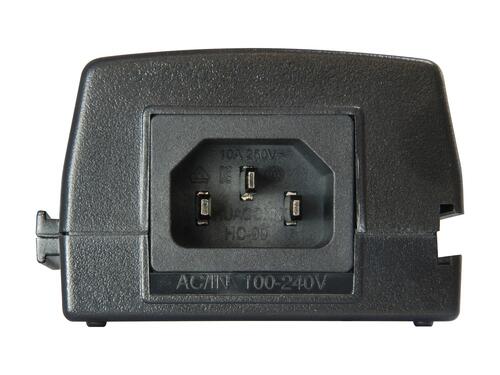

Power Requirement: 100-240V AC, 50/60Hz, 0.8A
Power Consumption: 30W (Max.)
Operating Temperature (°C): 0°C ~ 45°C
Operating Humidity (Non-condensing): 5 ~ 95%
Storage Temperature (°C): 0°C ~ 70°C
Storage Humidity (Non-condensing): 5% ~ 95%

Physical Specifications
Dimensions (W x D x H mm): 64.39 x 43.4 x 145.7 mm
Weight (g): 350g
