  • GPS GNSS Antenna with Mangetic Base, 3.0dBi, SMA Male

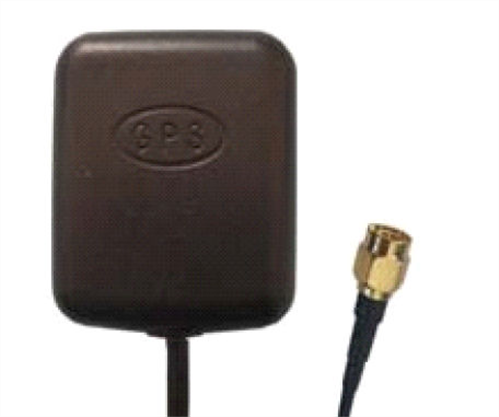

Robustel E003031 GPS GNSS Antenna with Mangetic Base, 3.0dBi, SMA Male

GPS GNSS Antenna with Mangetic Base, 3.0dBi, SMA Male

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Parameter

Rated Value

Centre Frequency

1575.42 MHz

Antenna Gain

3.0 dBi

Antenna V.S.W.R

1.5 Max

Polarization

RHCP

Impedance

50 Ohm

LNA Gain

28 dBi

LNA Noise Figure

1.5 dB

Supply Voltage

2.7V/3.0V/3.3V/5.0V

Current Consumption

5mA, 10mA Max

Cable

RG174, 3000mm

Mounting Method

Magnet

Connector

SMA Male

Operating Temperature

-40? ~ 70?

RoHS Compliant

√
