- Firewall Throughput: 940 Mbps
- WAN Connectivity: 4G Cat 18, GbE, SFP+
- LAN Connectivity: Wi-Fi 6, GbE
- Solution: 5 year NetCloud Enterprise Branch Service
Cradlepoint E300 Series Router is sold as part of a NetCloud Enterprise Branch Essentials or Essentials + Advanced Package, an all-inclusive networking service comprised of
support, hardware, and software services.
— Award-winning remote cloud management and network intelligence with NetCloud
— Purpose-built hardware
— 24x7 support and limited lifetime warranty
NetCloud Enterprise Branch Essentials:
- Management & Orchestration
- Asset Tracking
- Alerts / Logs / Troubleshooting
- Out-of-Band Management with
- Remote Connect
- Live Troubleshooting with Remote Connect
- Analytics & Insights
- Location Services
Upgrade to the Essentials Package for these extra services:
- Cellular Health Analytics
- Security Insights
- CP Secure Web Filter
- CP Secure Threat Detection/Protection
- Multi-Carrier SD-WAN
- Application Traffic Analytics
- Application Aware Networking
The Cradlepoint NetCloud Enterprise Cloud Service with E300 Series Router is ideally suited for office branches, stores, pop-up temporary locations, and restaurants.
The all-in-one form factor includes full featured routing, security, and Wi-Fi, making it easy to connect branches to the Internet and critical applications without the need for extra hardware or complicated configurations. And the embedded LTE modem means that
connectivity is always available from day 1 without waiting for a wired internet connection.
NetCloud Enterprise begins with NetCloud to rapidly deploy and dynamically manage LTE WAN networks at geographically distributed locations. Use NetCloud’s visibility and control capabilities to define and distribute global policies for advanced routing, traffic control, and security. Benefit from intuitive insights by leveraging business intelligence as well as health and status alerts on security posture, network conditions, and carrier usage.

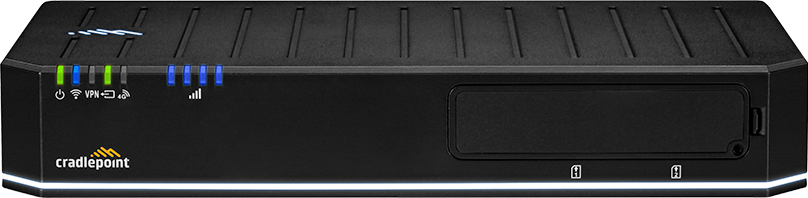

The E300 Series Router provides industry-leading Gigabit-Class LTE connectivity as a primary or failover connection combined with a wired link. With VPN support, Wi-FI 6, and integrated switching, the 5G ready E300 combines services, performance, and options for future technology integrations for a powerful combination in a portable, compact form factor.
- Open temporary locations without compromising security or reliability.
- Gain fast day-1 connectivity with integrated Cat 18 LTE Modem.
- Terminate a broadband link with LTE as failover for reliable hybrid connectivity.
- Integrate into your existing network with standards-based dynamic routing and VPN tunnel support.
- Add a second cellular modem for dual LTE connectivity.
- 5G Ready and able to act as controller for Cradlepoint 5G Wideband Adapters
LTE: LTE Advanced & LTE Advanced Pro
WiFi: 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS, Dual-radio, dual-band, concurrent operation (2.4 GHz & 5 GHz) with internal antennas
Ethernet Ports: 5 GbE, 1 SFP+
Material: Industrial Plastic
Operating Temperature: 0° C to 45° C
Size: (135 x 270 x 44 mm)
Dual-Modem Capable: Yes, field-upgradable MC400 modem slot
Modem: Embedded C18B modem (see below for more)
4 x SMA cellular antenna connectors
Optional dual modem: Modular MC400 modem
Ethernet: 5 x GbE RJ45 (LAN/WAN switchable), 1 x 10GbE SFP+ (LAN/WAN switchable)
Wi-Fi: Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
— 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
— 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz)
— Internal 2x2 antenna
— Global Optimized Wi-Fi
— WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP auto
— 802.11k, 802.11v
Expansion: 1 x USB 2.0 Type A (OOBM)
1 x Expansion (future expansion modules)
GNSS/GPS: 1 x SMA GNSS antenna connector
Power Required: Powered by external DC power supply, 100-240 VAC input, 12 VDC 2A output (included)
— 2.4 GHz band: 19.93 dBm EIRP
— 5150-5250 MHz: 22.98 dBm EIRP
— 5250-5350 MHz: 22.98 dBm EIRP
— 5500-5700 MHz: 29.82 dBm EIRP
— 5475-5825 MHz: 32.81 dBm EIRP
Cat 18 LTE Advanced Pro
— Dual SIM slots, mini 2FF form factor
— SIM-based auto-carrier selection
Carrier Aggregation: Up to 5 x CA downlink, 2 x CA uplink
Peak Downlink Rates: LTE: 1.2 Gbps
WCDMA: 42.2 Mbps
Peak Uplink Rates: LTE 150 Mbps
WCDMA: 5.76 Mbps
MIMO: 2x2 MIMO or 4x4 MIMO
LTE Bands: LTE FDD
— B1, B2(B25), B3, B4(B66), B5(B26/B18/B19), B7, B8, B12, B13, B14, B20, B28, B29, B30, B32, B71 LTE TDD
— B38, B39, B40, B41, B42, B43, B46, B48
WCDMA Bands: B1, B2, B4, B5(B19), B8
Power: LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Antennas: SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (qty 4. included)
GNSS/GPS: Active GNSS
— GPS, GLONASS, BeiDou, Galileo
— DC voltage bias supplied (typical 3.1v)
Private LTE: Yes, includes FCC Part 96 (CBRS Band 48)
