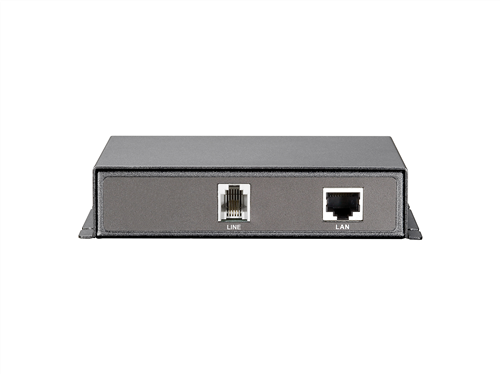

LevelOne POT-0100 2-wire Ethernet and PoE Extender, Transmitter

This is a master/transmitter unit.

Add the POT-0110 (slave/receiver) unit to create a point to link over 2-wire cable.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices
  • Maximum distance up to 400 meters for 24 AWG cable
  • Maximum data rate up to 60 Mbps full duplex
  • Remote PoE capability for PD devices ( WiFi AP, IP camera, IP telephones, etc. )
  • Up to 15 Watts for remote PoE, Depending on PSE power
  • Easy installation
  • Dip Switches for 2-wire line rate settings
  • Auto MDIX for 10/100 Base T Ethernet LAN Ports
  • Low-Latency for Video/Voice/Data applications

The POT system, one master (transmitter) & one slave (receiver) unit, provide a long-reach Ethernet extension with remote Powerover-Ethernet (PoE) capability over a 2-wire line.

The POT master unit is powered by the local PoE Ethernet network, and transmits both the data and power to the remote slave unit over 2-wire cable. The remote unit regenerates the power and provides the PoE capability to power up the remote PD device up to 15 watts when connecting to 48Watt High Power PoE Switch/Injector.

Equipped with dip switches, the 2-wire line speed can be configured to meet different line gauges and distances. A POT pair offers a cost effective solution for remote power applications such as LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over single twisted line.
