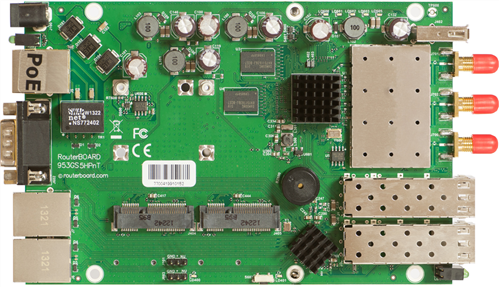

MikroTik RB953GS-5HNT-RP Routerboard 5GHz 802.11a/n 3x3 MIMO AP/CPE (board only)

720MHz CPU, 128MB RAM, 3x Gigabit Ethernet, 2xSFP cage, built-in 5GHz 3x3 MIMO wireless, 2x miniPCI-e, 2x SIM, USB, 3xRPSMA connectors, RouterOS L5

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The RouterBOARD 953GS-5HnT-RP is MikroTik's first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.

It is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.

Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.

Architecture MIPSBE
CPU QCA9558
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 183x105x24mm
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C .. +70°C tested

Powering
Max Power consumption 25W
PoE in Passive PoE
PoE in input Voltage 11-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-30 V
Wireless
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n
Wireless 5 GHz chip model QCA9558
Ethernet
10/100/1000 Ethernet ports 3
Fiber
SFP ports 2
Peripherals
Number of SIM slots 2 Modem (Mini SIM)
MiniPCI-e slots 2
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Details
PCB temperature monitor Yes
Voltage Monitor Yes





RB953GS-5HnT
