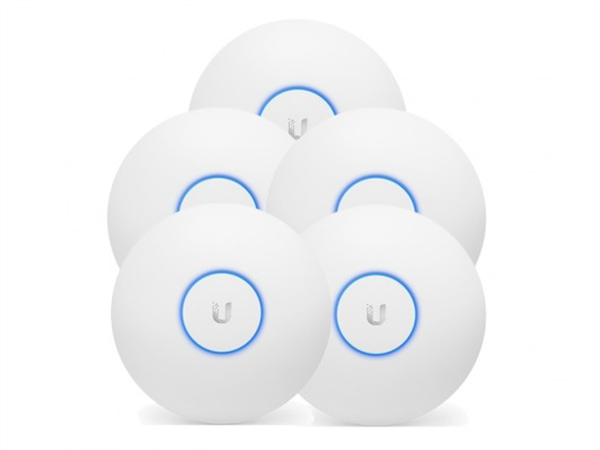

Ubiquiti UAP-AC-LR-5 5-pack of UAP-AC-LR High Speed 802.11ac Long Range Managed Wireless AP

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

5 Pack of Ubiquiti UniFi AP AC Long Range 250mW Dual Band 802.11ac 3x3 + 2x2 MIMO 450Mbps (2.4GHz) + 867Mbps (5GHz)

PoE Not Included. Use PoE adapter 'POE-24-12W-G' or PoE switch with 24V such as US-8-150W
*Note these devices do not support 802.3af PoE (48V)

802.11 a/b/g/n/ac Wi-Fi Standards
Range of up to 600'
1 x 10/100/1000 Ethernet Ports
Up to 450 Mbps on 2.4 Ghz Wireless
Up to 867 Mbps on 5 Ghz Wireless
UniFi Controller Software
Integrated Omni Antennas
Guest Portal/Hotspot Support
Passive Power over Ethernet

The UAP-AC-LR-US 802.11ac Long Range Access Point from Ubiquiti Networks is ideal for long-range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.

Networking Interface

1 x 10/100/1000 Ethernet ports

Button

Reset

Antennas

1 x Dual-band antenna, tri-polarity
2.4 GHz: 3 dBi
5 GHz: 6 dBi

Wi-Fi Standards

802.11 a/b/g/n/ac

Power Method

Passive Power over Ethernet (24 V), (Pairs 4, 5+; 7, 8 return)

Power Supply

24 V, 0.5 A Gigabit PoE (adapter not included)

Maximum Power Consumption

6.5 W

Maximum TX Power

2.4 GHz: 24 dBm
5 GHz: 22 dBm

BSSID

Up to 4 per radio

Power Save

Supported

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certifications

CE, FCC, IC

Mounting

Wall/ceiling (kits included)



Advanced Traffic Management

VLAN

802.1Q

Advanced QoS

Per user rate limiting

Guest Traffic Isolation

Supported

WMM (Wi-Fi Multimedia)

Voice, video, best effort, and background

Concurrent Clients

200+



Supported Data Rates (Mb/s)

Standards

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mb/s

802.11n
6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40)

802.11ac
6.5 to 867 Mb/s (MCS0 - MCS9 NSS 1/2/, VHT 20/40/80)

802.11b
1, 2, 5.5, 11 Mb/s

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mb/s



Physical Characteristics

Operating Temperature

-10 to 70°C

Operating Humidity

5 to 95% non-condensing

Dimensions ea.

17.57 x 17.57 x 4.32 cm

Weight ea.

Without Mounting Kit: 241.0 g
With Mounting Kit: 314.7 g



Save Money and Save Time
The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.
Wi-Fi 802.11ac MIMO Technology
The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.
Intuitive UniFi Controller Software
Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.
Expandable
Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.
UniFi Controller
Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Analytics
You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Guest Portal/Hotspot Support
Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.
Multi-Site Management
A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.
WLAN Groups
The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Maps
Upload map images of your location for a visual representation of each wireless network.
Statistics
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.
Extend Your Coverage
With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.
Easy Mounting
Sleek wall or ceiling mount design (all accessories included).
Design
It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.
Power over Ethernet (PoE)
Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).
