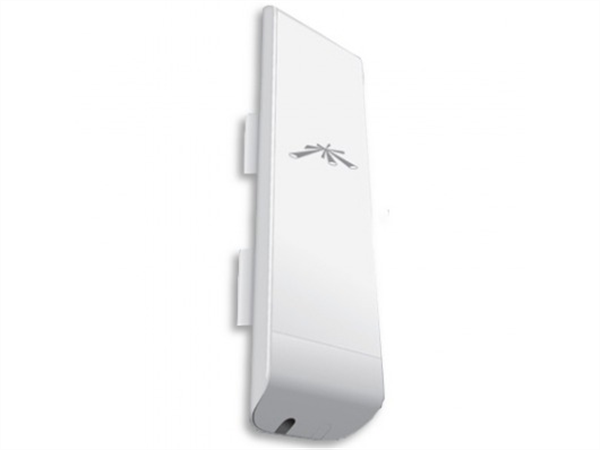

Ubiquiti NSM5 802.11a 500mW Outdoor Wireless Access Point/Bridge, PoE adapter included

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The NanoStation5 Broadband Outdoor Wireless CPE Router from Ubiquiti Networks features a broadband wireless CPE technology, hi-gain two antenna system, advanced radio architecture, and firmware technology allowing throughput, stability, and capacity performance. The NanoStation5 is a reliable solution for high performance and can work in extreme temperature and weather conditions.

NanoStation5 utilizes Adaptive Antenna Polarity technology, which can statically or dynamically switch antenna polarities to optimize your connections. The AirOS is an intuitive, versatile Ubiquiti -firmware technology that is included with NanoStation5. It is designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables high-performance outdoor multi-point networking.

General Specifications

Processor

Atheros AR2313 SOC, MIPS 4KC, 180 MHz

Memory

16 MB SDRAM, 4 MB flash

Networking Interface

10/100 BASE-TX (Cat5, RJ-45) Ethernet interface

Range

Outdoor (BaseStation Antenna Dependent): Over 32,808' (10,000 m)
Using External Antenna (Optional): 32,8083' (10,0000 m)

Throughput

25 Mb/s+ TCP/IP



Radio Operating Frequency

TX Specification

Radio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Average Power: Tolerance
6 Mb/s: 24 dBm: +/-1.5 dB
9 Mb/s: 24 dBm: +/-1.5 dB
12 Mb/s: 24 dBm: +/-1.5 dB
18 Mb/s: 24 dBm: +/-1.5 dB
24 Mb/s: 24 dBm: +/-1.5 dB
36 Mb/s: 22 dBm: +/-1.5 dB
48 Mb/s: 21 dBm: +/-1.5 dB
54 Mb/s: 19 dBm: +/-1.5 dB

RX Specification

Radio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: +/-1.5 dB
9 Mb/s: -93 dBm: +/-1.5 dB
12 Mb/s: -91 dBm: +/-1.5 dB
18 Mb/s: -90 dBm: +/-1.5 dB
24 Mb/s: -86 dBm: +/-1.5 dB
36 Mb/s: -83 dBm: +/-1.5 dB
48 Mb/s: -77 dBm: +/-1.5 dB
54 Mb/s: -74 dBm: +/-1.5 dB



Channel Size Support

Channel Width

5/10/20/40 MHz



Antenna

Gain

Integrated 2 x 14 dBi dual polarity antennas

Polarization

Multi-polarized

Polarity

Adaptive vertical/horizontal

Polarization Selection

Software controlled

3 dB Beamwidth Azimuth

55°

External Antennas

RP-SMA connector (optional)

VSWR

1.4:1.0

Front to Back Ratio

30 dB+

3 dB Beamwidth Elevation

18°



Power

Power Supply

12 V, 1 A (12 W)

Power Method

Passive Power over Ethernet (pairs 4, 5+, 7, 8 return)



Environmental

Operating Temperature

-20 to +70°C

Operating Humidity

5 to 95% (condensing)



Software Specification

Software

AirOS



Compliance and Approvals

Compliance

RoHS

Approvals

FCC Part 15.247, IC RS210, CE



Other

Shock and Vibration

ETSI300-019-1.4

Mounting

Pole mounting kit (included)

LEDs

External status LEDs



Physical Characteristics

Enclosure Material

Outdoor UV stabalized plastic

Dimensions (L x W x H)

26.4 x 8.0 x 3.0 cm

Weight

400.0 g
