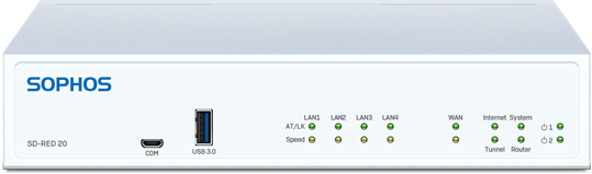

SOPHOS R20ZTCHMR SD-RED 20 Remote Branch Access Appliance

SD-RED: Zero-Touch Edge and Branch Connectivity

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

SD-RED makes extending your secure network to all your remote locations easy and affordable. It requires no technical skills at the remote site. Simply enter the RED device ID into your XG Firewall and ship it. As soon as it’s plugged in and connected to the internet, our provisioning service automatically connects it to your firewall and establishes a secure, dedicated VPN tunnel. And there’s no added licensing cost for SD-REDs – it’s included in your XG Firewall Network Protection License.

An Innovative Solution to SD-WAN VPN Connectivity

  • Zero-touch auto provisioning enables deployment by non-technical staff
  • Secure VPN tunnel connectivity with your XG Firewall from anywhere via our lightweight robust Layer 2 RED tunnel
  • Selective routing options for any mix of VPN and local WAN access
  • Enterprise-grade encryption
  • Flexible connectivity options, including 3G/4G/LTE cellular, copper, fiber, and integrated Wi-Fi
  • 250 Mbps Maximum Throughput
  • 4x GE LAN Interfaces
  • 1x WAN Ports (Shared with SFP)
  • 1x SFP Port (shared port with WAN)
  • 2 x USB 3, 1 x Micro-USB
  • Modular Bay for Optional Modules (Wi-Fi, 3G/4G)

RED20 Hardware Specifications
CPU : NXP LS1012A, 800 MHz, 1 Core
Memory : 512 MB DDR3
Storage : 2MB NOR Plus 128 MB NAND
Capacity : Maximum Throughput 250 Mbps

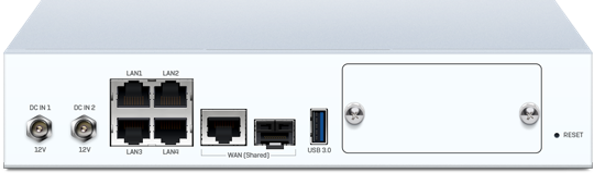

Physical Interfaces (Built-in) :
LAN Interfaces 4 x 10/100/1000 Base-TX (1 GbE Copper)
WAN Interfaces 1 x 10/100/1000 Base-TX (shared with SFP)
SFP Interfaces 1x SFP Fiber (shared port with WAN)
USB Ports 2 x USB 3.0 (front and rear)
COM Ports 1 x Micro-USB
Optional Connectivity :
Modular Bay 1 (for use with optional Wi-Fi OR 4G/LTE Card)
Optional Wi-Fi Module : 802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable
2x2 MIMO 2 antennas
Optional 3G/4G LTE Module  : MC7430/MC7455 Sierra Wireless Card
Optional VDSL Modem Optional SFP Modem

Physical Specifications
Dimensions : 225 x 44 x 150 (w*h*d) mm
Weight : 0.9 kg/1.8 kg, Unpacked/Packed
Power Supply Adapter AC Input: 110-240VAC @50-60 Hz
DC Output:  12V +/- 10%, 3.7A, 40W"
Power Redundancy Support via optional 2nd power supply
Power Consumption Idle: 6.1Watt/20.814 BTU
Full Load: 22.6Watt/77.114 BTU
Temperature (operational) 0°C to 40°C (32°F to 104°F)
Temperature (storage) -20°C to 70°C (-4°F to 158°F)
Humidity  10-90% RH, non-condensing
