Plug-n-Play Mesh technology in the VigorAP 912C allows up to 8 Access Points to be wirelessly interconnected as a Mesh group to provide extended wireless coverage. This can be quickly and easily set up using the built-in Quick Start Wizard or with the free Smartphone Wireless app available from DrayTek.
• 10/100/1000M Base-T, RJ-45, supports 802.3af PoE
• Dual-band 802.11ac Wave 2 with 2×2 MU-MIMO
• 2 x Internal Dual Band PiFA Antennas
• Wi-Fi speeds up to 867 Mbps for 5 GHz band and 300 Mbps for 2.4 GHz band
• Built-in RADIUS server
• 4 SSIDs for each Wi-Fi band with unique VLAN setting, Access Control, and Bandwidth Limit policies
• AP-assisted Roaming
• Airtime Fairness
• Band Steering
• Plug-n-Play Meshing
• Operation Mode: AP / Mesh Node/ Range Extender
• Ceiling-mount housing
• Supports Central AP Management
• Supports VigorACS 2 Central Management System for remote management (available from v 2.5.4)
• Supports VigorConnect free software for local network management

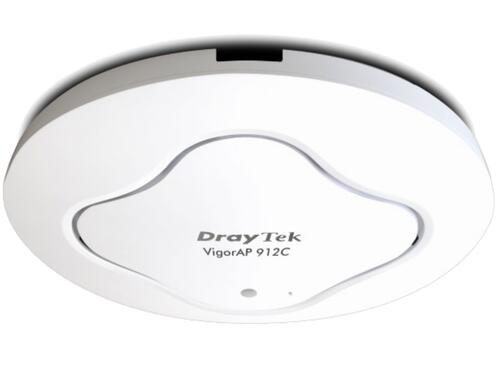

The VigorAP 912C is an 802.11ac ceiling mounted wireless Access Point with a PoE PD port. The PoE PD feature reduces installation costs by allowing the unit to be powered over the UTP cabling, eliminating the need to install a power outlet near the Access Point.
The VigorAP 912C supports the 802.11ac Wave 2 standard and provides advanced features such as AirTime Fairness, Band Steering, and AP-Assisted Roaming.
The Plug-n-Play Mesh technology in the VigorAP 912C allows up to 8 Access Points to be wirelessly interconnected as a Mesh group to provide extended wireless coverage. This can be quickly and easily set up using the built-in Quick Start Wizard or with the free Smartphone Wireless app available from DrayTek.
The Wi-Fi Mesh technology improves redundancy and reliability to any network. The “self-healing” feature of Mesh ensures an alternative path will be built in the event of an uplink connection failure, ensuring continuity of Wi-Fi services.
Easily link to other Vigor APs to expand the wireless network.
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.
Map Wi-Fi clients to different VLANs and have a different set of security standards
PoE Power Supply
Simplify infrastructure by getting data and power through a single cable.
Local RADIUS Server
User profile database for local and external 802.1x authentication.
Schedule Wi-Fi On and Off to control wireless access and save energy.
Equalize the transmission time of each client so legacy devices won’t slow everyone down.
Central AP Management
Manage, maintain, and monitor VigorAP 912C from DrayTek routers.
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.
VigorAP 912C Main Unit
Ceiling mount bracket
T-Rail Mounting Kits
(Used for suspended ceiling)
Fixings and Screws
(for ceiling mounting)
RJ-45 Cable (Ethernet)
Screw set (for wall mounting)
NZ-type power adapter
Quick Start Guide
