Ubiquiti ANT-179 5GHz Titanium Variable Sector Antenna

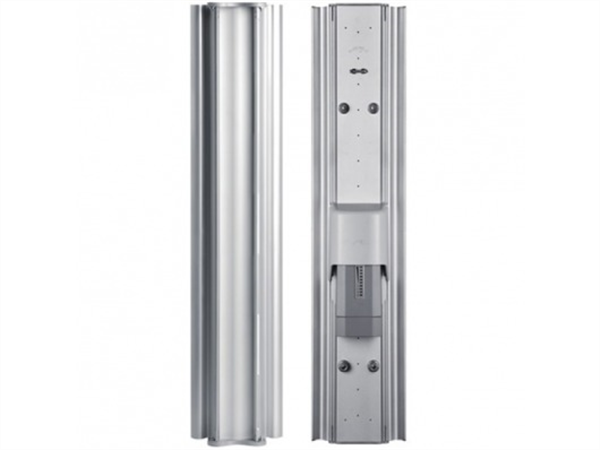

Ubiquiti 5GHz Titanium Variable Sector Antenna (AM-V5G-Ti)

Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti's best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.

Drawing on Ubiquiti's depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments. Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60deg, 90deg, or 120deg sector.

The Ubiquiti Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.

- Antenna gain increases respectively with each decrease in beamwidth. Gain is 19 dBi at 120deg, 20 dBi at 90deg, and 21 dBi at 60deg.
- The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a RocketM Titanium.
- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co-location environment
- Increased durability in harsh weather
- Adjustable Beamwidth
- Easily Mount and Protect Your Rocket

Frequency Range
5.45 - 5.85 GHz

Gain
21 dBi @ 60°, 20 dBi @ 90°, 19 dBi @ 120°

Polarisation
Dual-Linear

Cross Polarisation
25 dB Typical

Max VSWR
1.5:1

Horizontal Beamwidth
60°/ 90°/ 120°

Elevation Beamwidth4°

Downtilt
2°

Connector Type
(2) RP-SMA Female

Dimensions
721 x 149.1 x 75.7 mm

Wind Loading
125 mph

Pole Mount Diameter
38 - 75mm
