DrayTek DAP810 300Mbps 802.11b/g/n Wireless Access Point, 5 LAN Ports, dual subnet, VLAN, PoE

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Business-class IEEE 802.11n WLAN access point
Supports 802.3af Power over Ethernet (PoE-PD)
Wi-Fi multimedia (WMM) quality of service features
Comprehensive and trusted security
Supports 4 SSIDs
Multiple operation modes: access point, wireless client, wireless distribution system (WDS) with access point, WDS/bridge (No AP broadcasting)
TR-069 for LAN-A: firmware upgrade, configuration backup and restore
Supports Vigor routers’ AP Management
Embedded USB printer server

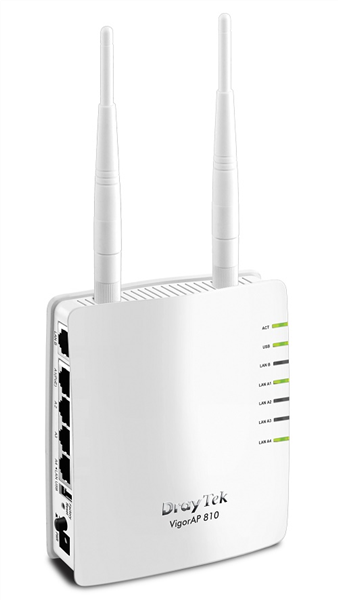

The DrayTek Vigor AP810 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features. It can also be used as part of the DrayTek managed wireless system

Business-class 802.11n WLAN access point
Manageable by DrayTek Wireless Management
Can be powered by supplied PSU or standard 802.3af PoE (Power-over-Ethernet)
2.4GHz 802.11n 300Mbps Wireless LAN
Dual isolated LAN interfaces
4-Port Ethernet Switch
Detatchable Antennae - Can be replaced
with uni-directional or higher-gain
Wireless Encryption : WEP, WPA, WPA2
Repeater/Bridge/Access Point/Station Modes
Wireless Client Isolation
Bandwidth management per SSID
802.1q VLAN Tagging (two subnets/VLANs)
Up to four distinct SSIDs (for VLANs)
MAC Address Filtering
Optional USB Thermometer
Radius / WPA User Authentication
802.1x User Authentication
WDS (Wireless Distribution System)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Built-in Site Surveyor

Vigor AP810 Specification:

IEEE 802.11b/g/n
Frequency Band 2.4 GHz
Wireless Encryption : WPA2 (802.11i) Encryption (WPA/WEP also supported but not recommended)
LAN Interfaces : 4 x 10/100BaseT Ethernet (LAN A), 1 x 10/100BaseT Ethernet (LAN B)
USB 2.0 Interface - for printer server
PoE (Power Over Ethernet - Standard 48v IEEE 802.3af) or mains powered (PSU included)
User Authentication : 802.1x (Requires Radius Server) (MD5/PEAP Modes)
Repeater/Bridge/Access Point/Station Modes
Wireless Client Status List in WUI
Wireless Client Isolation
Up to four distinct SSIDs (for VLANs)
Hidden SSID
MAC Address Filtering (ACL)
WDS (Wireless Distribution System)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Built-in DHCP server
802.1q VLAN (two VLANs/Subnets)
Wireless Transmit Power : Max 18 ± 1dBm
Temperature Operation : 0° C to 40° C
Humidity: 10% to 90 % (Non-condensing)
Physical Dimensions: mm
Weight : 0.255kg (main unit, including Aerials)
Wall Mountable
Pack Contents : AP810 main unit, two antenna, PSU, quick start guide, manual on CD-Rom
Power : 12VDC via AC/DC PSU (supplied) or 802.3af PoE (PoE switch or injector required)
