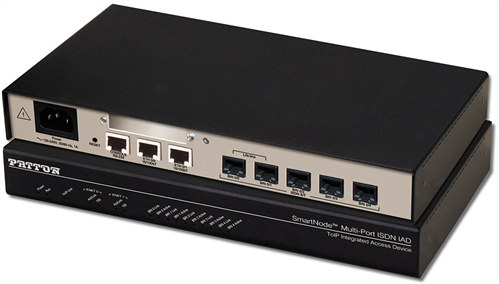

Patton SN4638/5BIS/UI Smartnode 5 BRI VoIP IAD - 8 VoIP Call; Passthrough Relay; H.323 and SIP, Internal UI Power.

Smartnode 5 BRI VoIP IAD - 8 VoIP Call; Passthrough Relay; H.323 and SIP, Internal UI Power.

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The award-winning SmartNode 4638, with 5 BRI ports and 8 simultaneous voice channels, is the best way to connect ISDN networks to the world of voice over IP. It enables small offices/remote offices to lower communication costs and provides business-class Internet telephony for demanding ISDN users.Like every SmartNode, the 4638 is a state-of-the-art VoIP gateways that also provide complete access routing and IP security features. Use the SmartNode as CPE or access router on broadband access, and you can benefit from industry leading Quality of Service (QoS) features ensuring a voice quality unmatched by any IP-phone or gateway on the market.The SmartNode 4638 is the solution for service providers and network integrators looking for a VoIP product that matches up to ISDN standards in terms of features and quality. SmartNode products provide seamless network integration, continuous trouble-free operation and cost effective deployment to protect your investments for the future.

SN4638/5BIS/EUI Features

  • 5 Ports Quality ISDN VoIP - 5 ISDN BRI So ports, 8 low-bandwidth voice or T.38 fax calls. Advanced adaptive traffic management and shaping for maximum voice quality. Voice prioritization and DownStreamQoS.
  • Full Telephony Features - SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.
  • Management & Provisioning - Web-based management, SNMP, command line interface, & auto-provisioning for automated configuration & SW upgrades.
  • Complete Access Routing - Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS & VPN with IPSec*
  • Full VoIP protocol support - SIPv2, H.323v4, ISDN, DSS1, QSIG*, T.38, fax and modem bypass, DTMF relay.
  • Outstanding Interoperability - Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors, and Asterisk IP-PBX

Voice Signaling
• SIPv2
• H.323v4
• SIP call transfer, redirect
• Overlap or en-bloc dialing
• DTMF in-band, out-of-band
• Configurable tones
Call Routing & Services
• Regular expression number matching
• Regular expression number manipulation
• Least Cost Routing
• Number blocking
• Short-Dialing
• Digit collection
• Distribution- and Hunt- Groups
ISDN
• 3/5 BRI So ports, RJ-45
• NT/TE configurable per port
• Built-in line power on each port (total 4W)
• DSS1, Q.921, Q.931. NTT-64
• Point-point and point-multipoint
• Lifeline Bypass Relay
• Optional QSIG support*
Voice Processing
• G.711m/A-law
• G.723.1 (6.4Kbps)
• G.729, 729a, 729ab (8Kbps)
• G.726 (16 ,24, 32, 40 Kbps)
• G.168 echo cancellation (25ms)
• 4/8 simultaneous low-bandwidth voice or T.38 fax calls
• Transparent ISDN data
• Silence suppression and comfort noise
• Adaptive and configurable dejitter buffer
• Configurable packet length
IP Quality of Service
• Voice priority, DownStreamQoS
• Traffic Management, shaping policing
• IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Connectivity
• Two 10/100 Ethernet ports
• Auto-MDIX
• DHCP Client
• PPPoE Client (multi-session)
• IP Multi-Netting, VLAN, Secondary IP
• IPv4, RIPv2, ICMP
• Dynamic and static NAT and NAPT
• ACL Firewall
• DNS, DynDNS
• DHCP Server
• SNTP Client
• Optional IPSec VPN (DES, 3DES, AES)
Management
• Web-based GUI
• Fully Documented CLI
• Telnet and HTTP access
• TFTP configuration up- and download
• TFTP firmware upgrade
• SNMPv1 agent (MIB II and private MIB)
• Built-in diagnostic tools
• Secure Auto-Provisioning
Power & Packaging
• Desktop metal chassis
• Dimension: 280/39/157 mm (W/H/D)
• Weight: < 600g
• Power Consumption < 10W
Operating Environment
• Operating temperature: 32 - 104°F (0 - 40°C)
• Operating humidity: up to 90% , non condensing

• 5 Ports Quality ISDN VoIP
  - 5 ISDN BRI So ports, 8 low-bandwidth voice or T.38 fax calls. Advanced adaptive traffic management and shaping for maximum voice quality. Voice prioritization and DownStreamQoS
• Full Telephony Features
  - SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.
• Management & Provisioning
  - Web-based management, SNMP, command line interface, & auto-provisioning for automated configuration & SW upgrades.
• Complete Access Routing
  - Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS & VPN with IPsec
• Full VoIP protocol support
  - SIPv2, H.323v4, ISDN, DSS1, QSIG*, T.38, fax and modem bypass, DTMF relay.
• Outstanding Interoperability
  - Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors, and Asterisk IP-PBX
