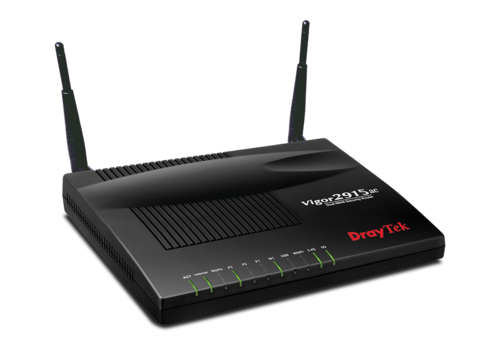

DrayTek DV2915AC Dual Gigabit Ethernet WAN Router/Firewall, with 802.11ac WiFi

  • Reliable Internet Gateway for Small Office and Home networks
  • 802.11ac (AC1200) Wi-Fi, up to 300 + 867Mbps speed

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Dual-WAN Gigabit broadband routers with 1 x GbE WAN, 1 x configurable GbE WAN/LAN port, 3 x GbE LAN ports, SPI Firewall, 802.11ac Wi-Fi (ac model), and 16 x VPN tunnels including 8 x SSL-VPN tunnels

  • 1 x Gigabit Ethernet WAN port
  • 1 x Configurable Gigabit Ethernet WAN/LAN port
  • 3 x Gigabit Ethernet LAN ports
  • Up to 30,000 NAT sessions and 500 Mbps NAT throughput
  • 1 x USB port for 3G/4G LTE mobile broadband access, USB printer, storage and thermometer
  • Load Balance and Failover functions for WAN and USB 3G/4G WAN
  • IPv6 & IPv4
  • Object-based SPI Firewall, Content Security Management (CSM) and QoS
  • 16 x VPN tunnels including 8 x SSL-VPN tunnels
  • 802.11ac (AC1200) Wi-Fi, up to 300 + 867Mbps speed
  • Central AP Management for deployment of up to 2 x VigorAPs
  • Central Switch Management for deployment of up to 2 x VigorSwitches
  • Support VigorACS 2 Central Management System for remote network management

The Vigor2915 Dual-WAN routers include two Gigabit Ethernet WAN interfaces and a USB port for 3G/4G mobile broadband. Load Balance and Failover functions are available for use on any of the 3 WAN connections. The Ethernet WAN ports support technology types FTTP, HFC, Satellite and Fixed Wireless deployed by NBN in Australia and UFB in New Zealand.

Features such as a comprehensive firewall with Content Security Management and support for up to 16 VPN tunnels make the Vigor2915 series an excellent solution for SOHO and small businesses that require moderate network speeds with high security and reliability.

The Vigor2915ac model supports concurrent 802.11n 2.4GHz + 5GHz Band Wi-Fi with a full set of business grade Wi-Fi functions, such as Multiple/Hidden SSID, WDS, AP Discovery, SSID VLAN grouping with LAN ports, Wireless Rate Control, WMM Airtime Fairness and Band Steering.

Load Balancing
Maximize throughput and reliability by using multiple Internet connections.

Wireless WAN
Get Internet access wirelessly from a Wi-Fi network, a mobile hotspot, or a personal hotspot set up on smartphones.

VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2915 Series to the remote offices and teleworkers over the Internet.

Firewall & Content Filter
Use URL keywords or web categories to filter web pages and block access to insecure or inappropriate content.

SSL VPN
SSL VPN works through firewalls providing secure remote access to any network environment.

Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality Wi-Fi.

Bandwidth Management
Control Internet bandwidth usage by users by using the bandwidth limit and session limit policy settings, and prioritise traffic by using the QoS feature.

DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.





Vigor 2915ac

Specification for DV2915 and DV2915AC (subject to change)

Interface

Performance

Fixed WAN Port

1 x 10/100/1000Base-TX, RJ-45

WAN/LAN Switchable Port

1 x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)

Fixed LAN Port

3 x 10/100/1000Base-TX, RJ-45

USB Port

1 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer

Button

1 x Factory Reset Button
1 x Wireless On/OFF/WPS Button (ac model)

2.4G WLAN

802.11n 2×2 MIMO 400 Mbps (ac model)

5G WLAN

802.11ac 2×2 MIMO 867 Mbps (ac model)

NAT Throughput

500 Mbps

NAT Throughput w/ Hardware Acceleration

900 Mbps

IPsec VPN Performance

200 Mbps (AES 256 bits)

SSL VPN Performance

150 Mbps

Max. Number of NAT Sessions

30,000

Max. Concurrent VPN Tunnels

16

Max. Concurrent OpenVPN + SSL VPN

8



Internet Connection

LAN Management

IPv4

PPPoE, DHCP, Static IP, PPTP/L2TP

IPv6

PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel

802.1p/q Multi-VLAN Tagging



Multi-VLAN for Triple Play



Wireless WAN

(ac model)

WAN Load Balancing



WAN Failover



WAN Active on Demand

Link Failure, Traffic Threshold

Connection Detection

ARP, Ping

WAN Data Budget



Dynamic DNS



DrayDDNS



VLAN

802.1q Tag-based, Port-based

Max. Number of VLAN

8

DHCP Server

Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC

Port Mirroring



Local DNS Server



Conditional DNS Forwarding



Hotspot Web Portal



Hotspot Authentication

Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server



Networking

VPN

Routing

IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2

Policy-based Routing

Protocol, IP Address, Port, Domain

High Availability



DNS Security (DNSSEC)



Multicast

IGMP Proxy v2/v3, IGMP Snooping, Bonjour

SMB File Sharing

(Requires external storage)

LAN-to-LAN



Teleworker-to-LAN



Protocols

PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN

User Authentication

Local, RADIUS, LDAP, mOTP

IKE Authentication

Pre-Shared Key, X.509

IPsec Authentication

SHA1, SHA-256, MD5

Encryption

MPPE, AES, DES, 3DES

VPN Trunk (Redundancy)

Load Balancing, Failover

Single-Armed VPN



NAT-Traversal (NAT-T)





Firewall & Content Filtering

Bandwidth Management

NAT

Port Redirection, Port Triggering, DMZ Host, UPnP

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323

VPN Pass-Through

PPTP, L2TP, IPsec

IP-based Firewall Policy



Content Filtering

Application, URL, DNS Keyword, Web Features, Web Category (subscription required)

DoS Attack Defense



Spoofing Defense



IP-based Bandwidth Limit



IP-based Session Limit



QoS (Quality of Service)

TOS, DSCP, 802.1p, IP Address, Port, Application

VoIP Prioritization



APP QoS





Wireless LAN (ac model)

Management

Number of SSID

4 per band

Security

WEP, WPA, WPA2, WPS

Authentication

Pre-Shared Key, 802.1X

WDS

Bridge, Repeater (5G only)

Access Control

Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling

AirTime Fairness



Band Steering



WMM



Local Service

HTTP, HTTPS, Telnet, SSH, TR-069

Config File Export & Import



Config File Compatibility

Vigor2912

Firmware Upgrade

TFTP, HTTP, TR-069

2-Level Administration Privilege



Access Control

Access List, Brute Force Protection

Notification Alert

SMS, E-mail

SNMP

v2, v2c, v3

Syslog



Managed by VigorACS





Physical

Power Supply

DC 12V @ 2A

Max. Power Consumption

11.3 watts (ac model)

Dimension

220 mm x 160 mm x 36 mm

Weight

400g (ac model)

Operating Temperature

0 to 45°C

Storage Temperature

-25 to 70°C

Operating Humidity (non-condensing)

10 to 90%
