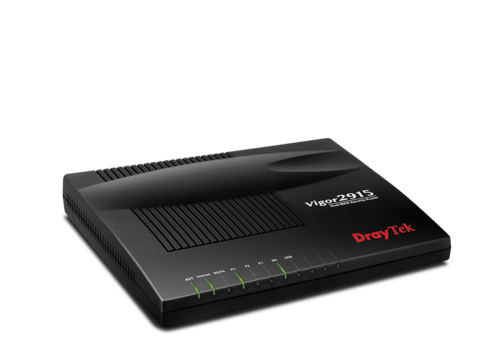

DrayTek DV2915 Dual Gigabit Ethernet WAN Router/Firewall
Reliable Internet Gateway for Small Office and Home networks
Dual-WAN Gigabit broadband routers with 1 x GbE WAN, 1 x configurable GbE WAN/LAN port, 3 x GbE LAN ports, SPI Firewall, and 16 x VPN tunnels including 8 x SSL-VPN tunnels
- 1 x Gigabit Ethernet WAN port
- 1 x Configurable Gigabit Ethernet WAN/LAN port
- 3 x Gigabit Ethernet LAN ports
- Up to 30,000 NAT sessions and 500 Mbps NAT throughput
- 1 x USB port for 3G/4G LTE mobile broadband access, USB printer, storage and thermometer
- Load Balance and Failover functions for WAN and USB 3G/4G WAN
- IPv6 & IPv4
- Object-based SPI Firewall, Content Security Management (CSM) and QoS
- 16 x VPN tunnels including 8 x SSL-VPN tunnels
- Central AP Management for deployment of up to 2 x VigorAPs
- Central Switch Management for deployment of up to 2 x VigorSwitches
- Support VigorACS 2 Central Management System for remote network management
The Vigor2915 Dual-WAN routers include two Gigabit Ethernet WAN interfaces and a USB port for 3G/4G mobile broadband. Load Balance and Failover functions are available for use on any of the 3 WAN connections. The Ethernet WAN ports support technology types FTTP, HFC, Satellite and Fixed Wireless deployed by NBN in Australia and UFB in New Zealand.
Features such as a comprehensive firewall with Content Security Management and support for up to 16 VPN tunnels make the Vigor2915 series an excellent solution for SOHO and small businesses that require moderate network speeds with high security and reliability.
Load Balancing
Maximize throughput and reliability by using multiple Internet connections.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2915 Series to the remote offices and teleworkers over the Internet.
Firewall & Content Filter
Use URL keywords or web categories to filter web pages and block access to insecure or inappropriate content.
SSL VPN
SSL VPN works through firewalls providing secure remote access to any network environment.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality Wi-Fi.
Bandwidth Management
Control Internet bandwidth usage by users by using the bandwidth limit and session limit policy settings, and prioritise traffic by using the QoS feature.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.
Vigor 2915
Specification for DV2915 and DV2915AC (subject to change)
|
Interface |
|
|---|---|
|
Performance |
|
|
Fixed WAN Port |
1 x 10/100/1000Base-TX, RJ-45 |
|
WAN/LAN Switchable Port |
1 x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4) |
|
Fixed LAN Port |
3 x 10/100/1000Base-TX, RJ-45 |
|
USB Port |
1 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
|
Button |
1 x Factory Reset Button |
|
2.4G WLAN |
802.11n 2×2 MIMO 400 Mbps (ac model) |
|
5G WLAN |
802.11ac 2×2 MIMO 867 Mbps (ac model) |
|
NAT Throughput |
500 Mbps |
|
NAT Throughput w/ Hardware Acceleration |
900 Mbps |
|
IPsec VPN Performance |
200 Mbps (AES 256 bits) |
|
SSL VPN Performance |
150 Mbps |
|
Max. Number of NAT Sessions |
30,000 |
|
Max. Concurrent VPN Tunnels |
16 |
|
Max. Concurrent OpenVPN + SSL VPN |
8 |
|
Internet Connection |
|
|---|---|
|
LAN Management |
|
|
IPv4 |
PPPoE, DHCP, Static IP, PPTP/L2TP |
|
IPv6 |
PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
|
802.1p/q Multi-VLAN Tagging |
|
|
Multi-VLAN for Triple Play |
|
|
Wireless WAN |
(ac model) |
|
WAN Load Balancing |
|
|
WAN Failover |
|
|
WAN Active on Demand |
Link Failure, Traffic Threshold |
|
Connection Detection |
ARP, Ping |
|
WAN Data Budget |
|
|
Dynamic DNS |
|
|
DrayDDNS |
|
|
VLAN |
802.1q Tag-based, Port-based |
|
Max. Number of VLAN |
8 |
|
DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
|
Port Mirroring |
|
|
Local DNS Server |
|
|
Conditional DNS Forwarding |
|
|
Hotspot Web Portal |
|
|
Hotspot Authentication |
Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
|
Networking |
|
|---|---|
|
VPN |
|
|
Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2 |
|
Policy-based Routing |
Protocol, IP Address, Port, Domain |
|
High Availability |
|
|
DNS Security (DNSSEC) |
|
|
Multicast |
IGMP Proxy v2/v3, IGMP Snooping, Bonjour |
|
SMB File Sharing |
(Requires external storage) |
|
LAN-to-LAN |
|
|
Teleworker-to-LAN |
|
|
Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
|
User Authentication |
Local, RADIUS, LDAP, mOTP |
|
IKE Authentication |
Pre-Shared Key, X.509 |
|
IPsec Authentication |
SHA1, SHA-256, MD5 |
|
Encryption |
MPPE, AES, DES, 3DES |
|
VPN Trunk (Redundancy) |
Load Balancing, Failover |
|
Single-Armed VPN |
|
|
NAT-Traversal (NAT-T) |
|
|
Firewall & Content Filtering |
|
|---|---|
|
Bandwidth Management |
|
|
NAT |
Port Redirection, Port Triggering, DMZ Host, UPnP |
|
ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
|
VPN Pass-Through |
PPTP, L2TP, IPsec |
|
IP-based Firewall Policy |
|
|
Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
|
DoS Attack Defense |
|
|
Spoofing Defense |
|
|
IP-based Bandwidth Limit |
|
|
IP-based Session Limit |
|
|
QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port, Application |
|
VoIP Prioritization |
|
|
APP QoS |
|
|
Wireless LAN (ac model) |
|
|---|---|
|
Management |
|
|
Number of SSID |
4 per band |
|
Security |
WEP, WPA, WPA2, WPS |
|
Authentication |
Pre-Shared Key, 802.1X |
|
WDS |
Bridge, Repeater (5G only) |
|
Access Control |
Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
|
AirTime Fairness |
|
|
Band Steering |
|
|
WMM |
|
|
Local Service |
HTTP, HTTPS, Telnet, SSH, TR-069 |
|
Config File Export & Import |
|
|
Config File Compatibility |
Vigor2912 |
|
Firmware Upgrade |
TFTP, HTTP, TR-069 |
|
2-Level Administration Privilege |
|
|
Access Control |
Access List, Brute Force Protection |
|
Notification Alert |
SMS, E-mail |
|
SNMP |
v2, v2c, v3 |
|
Syslog |
|
|
Managed by VigorACS |
|
|
Physical |
|
|---|---|
|
Power Supply |
DC 12V @ 2A |
|
Max. Power Consumption |
11.3 watts (ac model) |
|
Dimension |
220 mm x 160 mm x 36 mm |
|
Weight |
400g (ac model) |
|
Operating Temperature |
0 to 45°C |
|
Storage Temperature |
-25 to 70°C |
|
Operating Humidity (non-condensing) |
10 to 90% |
