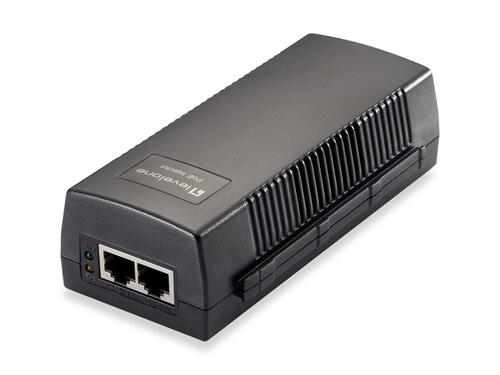

LevelOne POI-2012 PoE Injector, 100Mbps Ethernet, 802.3af, 15.4W

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

- Remove the need for a bulky power adapter and power line
- Delivers power and data to equipment via a single Ethernet cable
- Built-in power supply
- Extends PoE connection for another 100 meters
- Unique interlocking feature for easy installation

Standards & Protocols:
IEEE 802.3 10Base-T, Ethernet
IEEE 802.3u 100Base-TX, Fast Ethernet
IEEE 802.3af Power over Ethernet (PoE)
Ports:
1 x 10/100Base-TX RJ-45 Input Port
1 x 10/100Base-TX RJ-45 PoE Output Port
Indicators:
Power, PoE
Pin Assignment and Polarity:
4/5 (+), 7/8 (-)
Power Input:
Power Requirement: 100-240V AC, 50/60Hz, 0.8A
Power Output:
PoE Power Output: DC 52V / 15.4W
Unit Output Voltage: DC 52V / 0.3A
Power Consumption:
Power Consumption: 15.4W (Max.)

Operating Temperature (°C): 0°C ~ 45°C
Operating Humidity (Non-condensing): 5% to 95%
Dimensions (W x D x H mm): 87.9 x 51.3 x 166 mm
Weight (g): 350g

Package Contents
POI-2012
Quick Installation Guide
Power Cord
