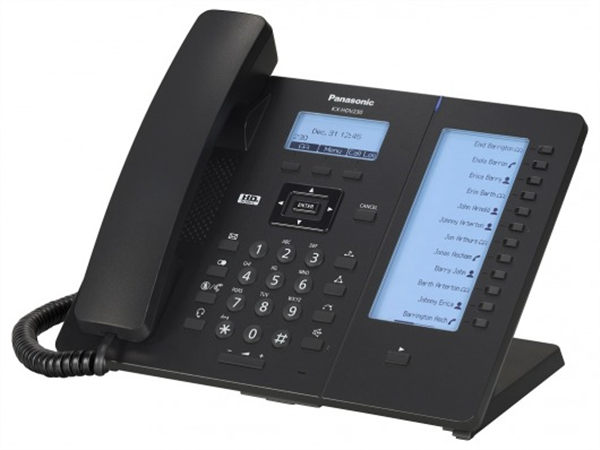

Panasonic KX-HDV230 IP Phone, large LCD with backlight, HD Voice, 2 x GigE ports, Built-in EHS

HD voice quality and large, easy to read LCD with backlight

Up to six SIP lines
2 x Gigabit Ethernet
PoE
QoS [Layer 3 ToS DSCP I 802.1p I Q tagging [VLAN] CNG,VAD,PLC, AEC
HD SONIC sound with wideband audio, full duplex, acoustic full duplex and acoustic echo cancellation
Packet loss concealment in hardware and software
Maximised voice quality and wideband communication performance
Large, easy to read LCD with backlight
12 function keys with self-labelling (up to 224 keys with optional expansion module - HDV20)
The Panasonic KX-HDV Series IP phones offer streamlined functions and the high definition voice quality that's essential for effective communication.

12 Function Keys
with Self Labeling HD Voice Quality 12 flexible function keys can be constantly displayed, and up to 24 numbers can be registered. Since the numbers are displayed on the screen, a paper label is
not required. In addition, the flexible function keys enable expansion up to 224 keys with the optional Expansion Module.
HD Voice Quality
12 flexible function keys can be constantly displayed, and up to 24 numbers can be registered. Since the numbers are displayed on the screen, a paper label is not required. In addition, the flexible
function keys enable expansion up to 224 keys with the optional Expansion Module.
The KX-HDV Series incorporates HD SONIC features, such as full duplex, acoustic echo cancellation, and packet loss concealment, in its hardware and software to maximise voice quality and wideband communication
performance. HD SONIC contributes to clear voice communication.
A Large, Easy-to-Read LCD with Backlight
A 2.3-inch main LCD and 5-inch self-labeling LCD with flexible function keys are used. The LCD with backlight makes text easy to read, ideal for work that centres on conversing.
Up to 6 Lines, 2 x Gigabit Ethernet & PoE
Featuring Gigabit Ethernet for comfortable communication, a single unit can connect to as many as six lines. PoE compatibility also eliminates the need for an AC adaptor.
 Audio Features
•HD voice
•Wideband codec: G.722
•Narrowband codec: G.711a-law, G.711μ-law, G.729a
•DTMF: In band, Out band (RFC2833), SIP INFO
•Full duplex speakerphone
•CNG, VAD, PLC, AEC
IP Features
•6 SIP accounts
•IP version: IPv4, IPv6
•NAT traversal (STUN / Rport (RFC3581) /Port Punching / ICE)
•Embedded web server
•QoS (Layer 3 ToS DSCP / 802.1p / Q tagging (VLAN))
 Phone Features
•Anonymous call (CLIR), Anonymous call rejection
•Call forward, Call hold, Call transfer, Call waiting
•Caller ID (CLIP, CNIP), Caller ID blocking
•Distinctive ring
•Do not disturb
•Ring selection
•Local phonebook (Up to 500 numbers)
•LDAP / XML Remote phonebook
•Blacklists (Up to 30 lists)
 Management
•Auto provisioning (SIP PnP / DHCP option / Redirection server)
•Export current active settings
•Automatic firmware upgrade
•Reset to factory default, Reset to carrier default, Reboot
Interface
•Gigabit Ethernet port (2 × 10/100/1000 Mbps)
•Headset port (RJ9)
•EHS Supported (no need for an external EHS adapter) *
•PoE (IEEE 802.3af)
•Optional Expansion Module interface (Up to 5 units)
 Display / Indicator
•132 × 64 pixel 2.3 - inch graphical LCD
•160 × 384 pixel 5 - inch graphical LCD
•LCD backlight (Both LCD)
•1 LED for Ringer, Message waiting and Missed call indication
•12 LEDs for Flexible function and Line indication
 Others
•Wall mount (Include)
•Power consumption (PoE): 3.2 W
•Power consumption (AC adaptor): 2.9 W
•Operationenvironment:0˚C-40˚C/20%-80%(Noncondensing)
•Dimensions (W × D × H mm):252 × 179 × 188 (High position)
252 × 187 × 154 (Low position)
•Weight: 1,030 g

BROADSOFT Compatible
∙Basic Call Feature
∙Missed Calls Display
∙N-Way Conference
∙Busy Lamp Field
∙Call Centre
∙Call Park Notification
∙Click to Call
∙Feature Key Synchronisation
∙Shared Call Appearance
∙Broadsoft Xsi
∙BroadSoft Presence
∙BroadSoft Xsi Phonebook
