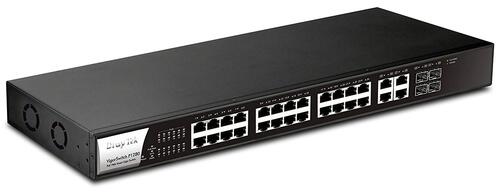

DrayTek P1280 28-Port Gigabit Ethernet PoE/PoE+ Smart Switch, 24 PoE Ports, 4 Combo RJ45/SFP

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The DrayTek VigorSwitch P1280 is a Web Smart Gigabit PoE switch. It has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 340 watts. It is also equipped with 4x GbE/SFP combo ports and enterprise-level features to help businesses to improve network security and stability.

  • 24x PoE/PoE+ Gigabit Ethernet, RJ-45
  • 4x Gigabit Ethernet, RJ-45/SFP Combo
  • 340 watts of PoE Power Budget
  • 56 Gbps Switching Capacity

PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.

PoE Device Check
Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle.

Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more

Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

In-the-Box

  • VigorSwitch P1280
  • Rack Mount Kit (brackets)
  • Power Cord
  • Quick Start Guide
