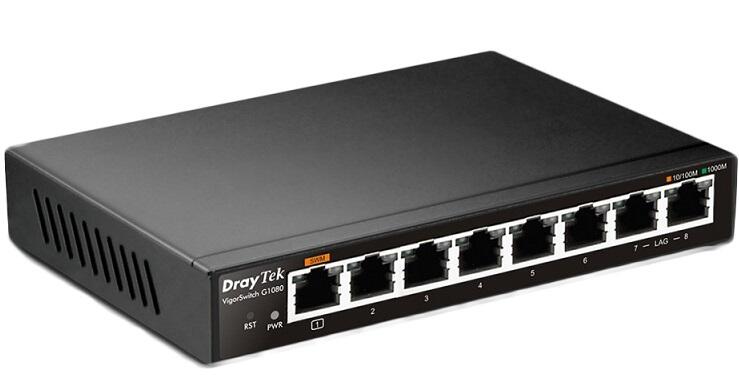

DrayTek G1080 8-Port Gigabit Ethernet Smart Switch

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Then DrayTek VigorSwitch G1080 is an extremely compact 8-port smart-lite Gigabit switch. It provides basic management including 802.1q VLAN, 802.1p CoS QoS, Link Aggregation, Storm Control, and Loop Prevention.

  • 8x Ports 10/100/1000M Ethernet, RJ-45
  • 8x VLANs, 802.1q Tag-based Support
  • Light weight, just 325g
  • 3.3W, Low power consumption

802.1q VLAN
Partition the local network by 802.1q tag to increase data efficiency and security.

Link Aggregation
Combing Port 7 and 8 to increase network throughput.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

VLAN
Max.Number of VLAN 8
VLAN Type 802.1q Tag-based
QoS
Number of QoS Queues 4
Rate Limit Port-Based Ingress and Egress
Queue Scheduling WFQ, WRR
CoS (Class of Service) 802.1p CoS
Traffic Control
Storm Control Broadcast, Multicast, Unicast
Loop Prevention
Link Aggregation
Max. Number of Group 1
Max. Number of Member in Each Group 2 (Port 7 and Port 8)
Type LACP
Multicast
IGMP Snooping
Management
Web Interface HTTP
Config File Export/Import
Managed by Vigor Router SWM
Physical
Power Input DC 5V/1A
Max. Power Consumption 3.3 watts
Dimension (L x W x H) 154mm x 85mm x 26mm
Weight 320g (11.3oz)
Operating Temperature 0 to 40°C
