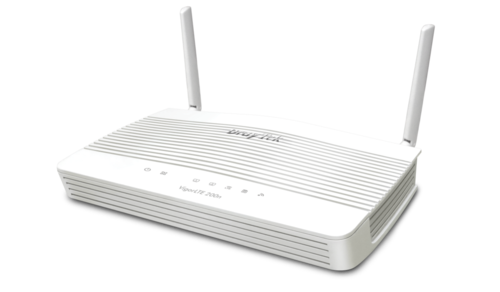

DrayTek DVLTE200N Dual-SIM LTE Router with Band28 support, 2x GigE, 802.11n Wi-Fi, VPN
• Built-in LTE modem (dual SIM card slots, SIM slot 2 for failover)
• 1 x con?gurable GbE WAN/LAN port (Port 2)
• 1 x Gigabit Ethernet LAN port (Port 1)
• 2 x detachable LTE antennas
• 2 x Internal Wi-Fi antennas
• IPv6 & IPv4
• 2 x VPN tunnels including 2 x SSL-VPN tunnels
• 802.11n Wi-Fi
• Bandwidth Management with intelligent VoIP QoS
• SPI Firewall
• Central AP Management (up to 2 Access Points)
• Supports VigorACS 2 Central Management System for remote management
• 2 years back to base warranty
The VigorLTE 200n is an LTE broadband Wi-Fi router for smart home or small business networks. The primary WAN interface is the LTE mobile broadband, ideal for sites without fixed lines infrastructure or locations needs temporary Internet access. It offers Dual-SIM slots for failover to increase coverage and reduce roaming costs. Alternatively, one of its 2x Gigabit Ethernet LAN ports can be switched to WAN interface and get internet access from a fixed-line broadband connection.
LTE/4G Specification
- LTE/4G category 4
- 150Mbps downstream and 50Mbps upstream
- 4G LTE FDD Band: 1, 3, 4, 5, 7, 8, 28
- 3G WCDMA Band: 1, 2, 5, 8
This router has two Ethernet ports and built-in 802.11n Wi-Fi for LAN access. The router can handle two concurrent VPN tunnels to link to the main offices or provides remote mangement access for Network Admins. It also offers the flexibility for network management, including Port Forwarding, SPI Firewall, Content Filtering, Bandwidth Management, QoS, and more.
- 150 Mbps Maximum LTE Download Speed
- N300 Wi-Fi. Built-in 802.11n Wireless LAN
- 2x VPN. IPsec Throughput up to 50 Mbps
- Dual-SIM. Insert 2x SIM cards for Failover
Embedded SIM Slot
Provide 4G/LTE Internet access to where fixed lines are (temporarily) not available without the need for a USB dongle.
VPN router
VPN (Virtual Private Network). Build a secure and private tunnel from the LAN of VigorLTE 200n to the remote offices and teleworkers over the Internet.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Dynamic DNS Service
DrayDDNS. The free DDNS service for you to access the router by a fixed hostname of your choice.
Central Wireless AP Management
Use the VigorLTE 200n router as a wireless controller to maintain and monitor the VigorAPs.
In-the-Box: VigorLTE 200n Router, LTE Antenna, RJ-45 Cable (Ethernet), Power Adapter, Quick Start Guide
Interface |
|
LAN/WAN Switchable Port |
1x 10/100/1000Base-TX Ethernet, RJ-45 (LAN P2) |
Fixed LAN Port |
1x 10/100/1000Base-TX Ethernet, RJ-45 |
SIM Slot |
2x Standard-Sized |
LTE Antenna |
2x Detachable |
2.4G WLAN |
802.11n 2x2 MIMO 300Mbps |
Wi-Fi Antenna |
2x Internal, Gain: 2 dBi |
Capacity |
|
NAT Throughput |
300 Mbps |
IPsec VPN Performance |
50 Mbps (AES 256 bits) |
SSL VPN Performance |
25 Mbps |
Max. Number of NAT Sessions |
30,000 |
Max. Concurrent VPN Tunnels |
2 |
Max. Concurrent SSL VPN |
2 |
LTE |
|
LTE Category |
4 |
Max. Data Rate |
150 Mbps downlink, 50 Mbps uplink |
FDD Band |
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) |
WCDMA (3G) Band |
1, 2, 5, 8 |
Internet Connection |
|
IPv4 |
PPPoE, DHCP, Static IP |
IPv6 |
PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
LTE WAN Bridge |
DHCP Client |
Multi-VLAN/PVC |
|
WAN Failover |
|
Connection Detection |
ARP, Ping |
Dynamic DNS |
|
DrayDDNS |
|
LAN Management |
|
VLAN |
802.1q Tag-based, Port-based |
Max. Number of VLAN |
8 |
DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
Networking |
|
Routing |
IPv4 Static Routing, IPv6 Static Routing, RIPv2 |
Multicast |
IGMP Proxy, IGMP Snooping & Fast Leave |
VPN |
|
LAN-to-LAN |
|
Teleworker-to-LAN |
|
Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IPsec XAuth |
User Authentication |
Local, RADIUS, mOTP |
IKE Authentication |
Pre-Shared Key, X.509 |
IPsec Authentication |
SHA-1, SHA-256, MD5 |
NAT-Traversal (NAT-T) |
|
Firewall & Content Filtering |
|
NAT |
Port Redirection, Open Ports, DMZ Host, UPnP |
ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
VPN Pass-Through |
PPTP, L2TP, IPsec |
IP-based Firewall Policy |
|
Content Filtering |
Application, URL, Web Features, Web Category* (*: subscription required) |
DoS Attack Defence |
|
Spoofing Defence |
|
Bandwidth Management |
|
IP-based Bandwidth Limit |
|
IP-based Session Limit |
|
QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Port |
Wireless LAN (n model) |
|
Number of SSID |
4 per radio band |
Security |
WEP, WPA, WPA2, WPS |
Authentication |
Pre-Shared Key, 802.1x |
WDS |
Bridge, Repeater |
Access Control |
Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
WMM |
|
Management |
|
Local Service |
HTTP, HTTPS, Telnet, SSH, TR-069, SMS Sending & Receiving |
Config File Export & Import |
|
Firmware Upgrade |
TFTP, HTTP, TR-069 |
Access Control |
Access List, Brute Force Protection |
Notification Alert |
SMS, E-mail |
SNMP |
v2, v2c, v3 |
Syslog |
|
Central AP Management |
2 VigorAP |
Physical |
|
Power Supply |
DC 12V @ 1A |
Max. Power Consumption |
12 watts |
Dimension |
207mm x 131mm x 42mm |
Weight |
380g |
Operating Temperature |
0 to 45°C |
Storage Temperature |
-25 to 70°C |
Operating Humidity (non-condensing) |
10 to 90% |
