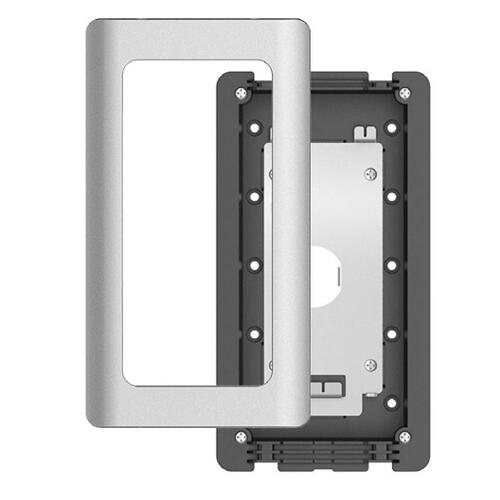

Grandstream GDS37X0-INWALL In-Wall Mounting Kit for GDS series of IP Door Systems
The In-Wall Mounting Kit is available for use with the GDS3710 IP Video Door Phone. This mounting kit allows the GDS3710 to be mounted flushed within a wall rather on the surface of the wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS3710 or the In-Wall Mounting kit, please follow local building and electrical code. The device is suggested to be installed with the bottom of the device 50-55 inches above the ground.
Included in the Box
1 installation bracket
1 cover plate
1 plastic box
1 drill template
Quick reference guide
1 metal frame
6 piece anchor and screw set
12 screws (2 different lengths
12 nuts (two different styles)
6 anti-tamper screws
1 anti-tamper hex key
Required In-Wall Space 99.8mm x 193.88mm, 35mm deep
