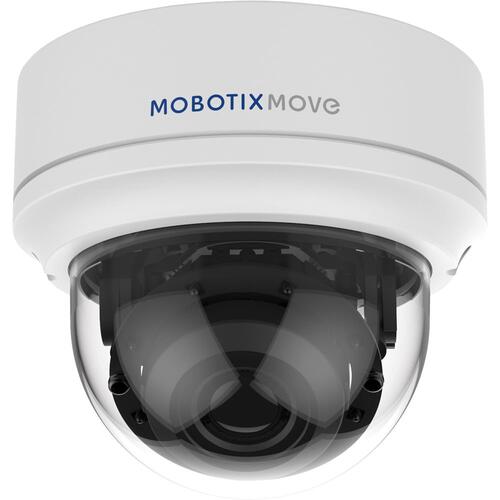

MOBOTIX MX-VD1A-4-IR-D Outdoor Day/Night Dome Camera, Varifocal Lens, Infra-Red LED (40m), 4MP
- 2688 x 1512 Resolution at 30 fps
- IR Illumination up to 40m
- 9-22mm Motorized Varifocal Lens
- 35 to 15° Horizontal Field of View
The VD-4-IR-D from MOBOTIX uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1512 resolution video at 30 fps. A built-in IR LED provides up to 40m of illumination in low-light conditions. The camera's 9-22mm motorized varifocal lens delivers a 35 to 15° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This dome camera complies with ONVIF profiles S, G, and Q, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
- Automatically removable IR cut filter enables day and night functionality
- 2µm pixel size
- H.264 and MJPEG video compressions
- Triple streaming
- Low-latency streaming
- LBR, CBR, and VBR
- 2.4x optical zoom
- Digital zoom supported
- DC auto iris
- Auto focus
- 3D motion compensated noise reduction (MCTF)
- 120 dB wide dynamic range
- Image settings include color, brightness, sharpness, contrast, white balance, exposure control, 2D-DNR, 3D-DNR, noise reduction by motion masking, and text overlay
- Corridor mode (90, 180, and 270° rotation)
- Privacy masking
- Zero downtime power switching
- Analytics include motion detection, tampering alarm, and audio detection
- Event triggers include external input, analytics, network failure detection, periodical event, and manual trigger
- Supports recording to NAS
- CVBS connector
- 100M Ethernet port
- Line audio input and output
- 4 x alarm inputs and 1 x alarm output
- CE, FCC, and LVD certified
