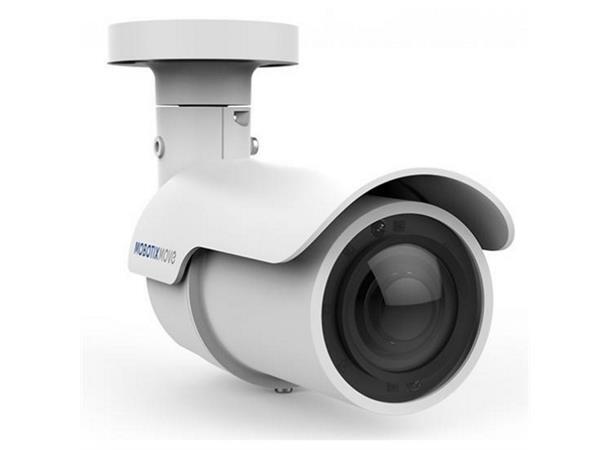

MOBOTIX MX-VB1A-4-IR Outdoor Day/Night Bullet Camera, Varifocal Lens, Infra-Red LED (40m), 4MP

Anti-Vandal Bullet Camera

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 2720 x 1536 Resolution at 30 fps
  • IR LEDs for Illumination up to 40m
  • 2.7-12mm Motorized Varifocal Lens
  • 99 to 31° Horizontal Field of View

The VB-4-IR from MOBOTIX uses a 1/3" progressive scan CMOS sensor to capture 2720 x 1536 resolution at 30 fps. IR LEDs provide up to 40m of illumination in low-light conditions. The camera's 2.7-12mm motorized varifocal lens delivers a 99 to 31° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data over one cable.

This bullet camera complies with ONVIF profiles S, G, and Q, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.

  • Automatically removable IR cut filter enables day and night functionality
  • 2µm pixel size
  • H.264 and MJPEG video compressions
  • Triple streaming
  • Low-latency streaming
  • LBR, CBR, and VBR
  • 4.4x optical zoom
  • Digital zoom supported
  • Precise iris
  • One-push auto focus
  • 3D motion compensated noise reduction (MCTF)
  • 120 dB wide dynamic range
  • Image settings include color, brightness, sharpness, contrast, white balance, exposure control, 2D-DNR, 3D-DNR, noise reduction by motion masking, and text overlay
  • Corridor mode (90, 180, and 270° rotation)
  • Privacy masking
  • Analytics include motion detection, tampering alarm, and audio detection
  • Event triggers include external input, analytics, network failure detection, periodical event, and manual trigger
  • CVBS connector
  • 100M Ethernet port
  • Line audio input and output
  • 2 x alarm inputs and 1 x alarm output
  • CE, FCC, and LVD certified

Application Area : Outdoor and Indoor

Servo-controlled Lens Alignment

Ambient Temperature (°C)

-30°C to 60°C (-22°F to 140°F) without Heater

-55°C to 60°C (-67°F to 140°F) with Heater

10 % to 90 %, no Condensation

IP Class : IP66

IK Class : IK10

Certifications

  • EMC: CE / FCC

  • Safety: LVD

  • Environment: IP66

    MTBF (h) : 40,000

    Audio : Line in/out

    DVR : Support for Recording to NAS

    Protocols

    ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,

    UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,

    DDNS

    Ethernet : 10/100 Mbps Ethernet

    Overvoltage Protection : Optional via Mx-Overvoltage-Protection-Box

    Mounting Options

    Floor

    Ceiling

    Wall

    Pole

    LensType : Zoom

    Image Angle horizontal

    99° (Wide), 31° (Tele)

    Image Angle vertical

    53° (Wide), 18° (Tele)

    Focal Length : 2.7 to 12 mm

    Aperture : F1.6

    Automatic IR-cut Filter

    Max. Frame Rate

    H.264: 4MP@30fps + d1@30fps

    MJPEG: 1080p@30fps

    Max. Image Size : 2688 x 1536 (4MP)

    Zoom Lens: Focus, Zoom, P-Iris

    Image Format : 16:9

    Sensitivity

  • Color: 0.1 lux

  • B/W: 0.01 lux

    Video Codec

    H.264

    MJPEG

    ONVIF : Profil S/G/Q Support

    Image Sensor : 4MP, 1/3“ Progressive CMOS

    Wide Dynamic Range (WDR) : 120 dB

    Power Consumption : max. 13.68 W

    Power Supply:

    PoE IEEE802.3af, Class 0

    DC 12 V, 1.14 A

    AC 24 V

    Integrated IR



    Interfaces

  • Alarm in x2, Alarm out x1, Terminal Block

  • DC12V Terminal Block

  • AC24V Terminal Block

  • Audio in 3.5 mm Jack

  • Audio out 3.5 mm Jack

  • CVBS Connector

    Height Product

    144

    Width Product (mm)

    105

    Depth Product (mm)

    233.8

    Diameter Product (mm)

    105

    Weight Product (g)

    1210

    Security

    Tamper Detection

    Yes
