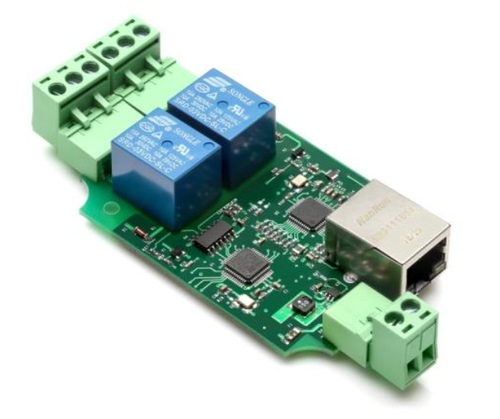

BrickElectric BEM104 Ethernet TCP/IP LAN Web access controller board, 2 channel, no case

Ethernet Relay

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

* WEB control / Port Forwarding
* Software update via Internet
* Auto ping and programmable reboot
* Hardware Reset
* 5 - 24 VDC power supply
* EasyBus - simple solution
* Android App
* LAN mode
* DHCP - Plug and play
* Internet Control
* Password Protection

The BEM104 is a Wide Supply Input, Ethernet Remote Relay Module, with 2 output channels. It comes in either an enclosed housing, or open board. This one is an open board model, with the option of adding a housing.

The Ethernet connector provides a 10/100baseT interface. It supports EasyBus-TCP, HTTP control, Auto ping and Internet control protocols, suitable for being used with servers, computers, mobiles, routers, etc., to provide remote control and monitoring.
You can also define the port number for HTTP yourself, for Router Port Forwarding. With it's DHCP functions, you can just plug and play, power it on and then enjoy your remote control.

Power Consumption : 3W max.
Operation Temperature : -30? to +85?
Module Size : 75mmx50mmx20mm
