AKCP LBTH LoRa Wireless Sensor, Dual Temperature and Humidity

Temperature and Humidity Monitoring with Easy installation and pairing with AKCP LoRa Gateway.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

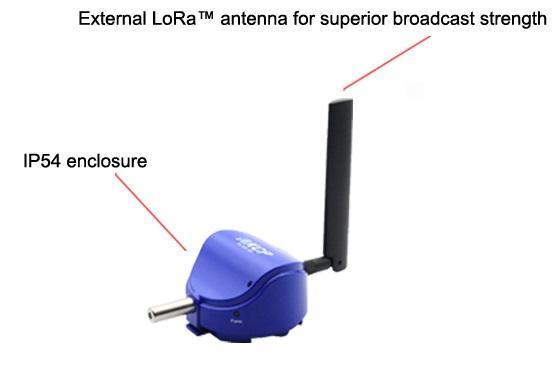

Ensure that your environmental conditions are within required parameters, log and graph data over time, and receive realtime alerts when user defined sensor thresholds are exceeded. IP54 rated enclosure provides weatherproofing for use in outdoor environments. Mounting with DIN rail, magnetic, wall hang, cable tie or pipe clamp. Easy installation and pairing with AKCP LoRa™ gateway.

  • Mounting : DIN Rail, Magnetic, Wall Hanging
  • Power source: Internal non-removable batteries or via micro-USB port
  • Power Consumption: Average 12 mWatt,
  • Up to 10 years of battery life
  • Status Indication LED indication for Mode
  • Components Manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
  • Operating Environment Temperature : Min. -35° C – Max.80° C
  • Humidity: Min. 20% – Max. 80% (Non-Condensing)

Temperature
Measurement Range: -40°C to +75°C
Measurement Resolution: 0.1°C increments
0.2°F increments
Measurement Accuracy: Maximum ±0.3 at -40ºC, minimum ±0.3 at +25ºC and ±0.3 at +75ºC
Maximum ±0.6 at -40ºF, minimum ±0.6 at +25ºC and ±0.6 at +167ºF
Humidity
Measurement range: 0 to 100% Relative humidity
Resolution: 1%RH increments, 0.01%RH sensor reading
Accuracy at: 25°C ±2%RH
Dry Contact (LBTD) 1x Discrete Dry Contact inputs
Input Switch type dry contact: open or close
Edge counter
