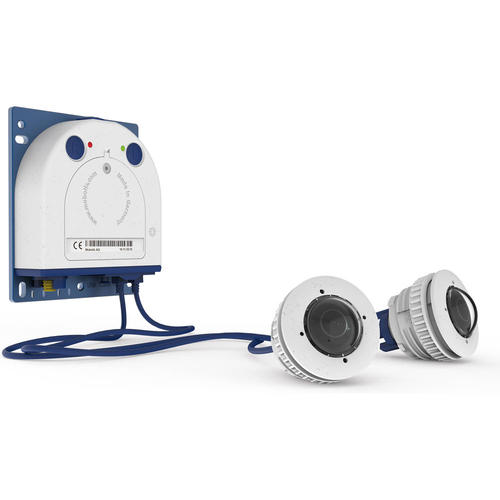

MOBOTIX MX-S16B-S2 S16B DualFlex 6MP Outdoor Network Camera with 2x 180 degree lenses

The MX-S16B-S2 S16B DualFlex 6MP Outdoor Network Camera with B016 Day Sensor Module comes with the S16B DualFlex camera body, two B016 (180 degree) day sensor modules, and all the accessories you need for outdoor surveillance. The camera is IP66 rated for outdoor use, and IK07 rated for impact protection.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • S16B DualFlex Body Included
  • 2 x Hemispheric 180 Degree HD Lenses included
  • 180° Horizontal Field of View ea.
  • Two-Way Audio and Built-In Microphone
  • 4GB microSD Card Included
  • RJ45 Ethernet with PoE Technology
  • Complies with ONVIF Profile S
  • Compatible with Windows, Mac, and iOS
  • IP66 Rated for Outdoor Use
  • IK07-Rated Impact Protection

This camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. Video management for this device is via the MxManagementCenter VMS for Windows & Mac, and the MOBOTIX app for iOS. The camera is IP66 rated for outdoor use, and IK07 rated for impact protection.

  • Modular design enables user to change sensors and lenses
  • Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
  • H.264, MxPEG, and MJPEG video compressions
  • 100M RJ45 Ethernet
  • USB interface to connect to external USB device
  • Digital zoom and pan
  • Genetec protocol integration
  • Programming interface (HTTP-API)
  • Programmable exposure zones
  • Snapshot recording (pre/post-alarm images)
  • Continuous recording with audio
  • Event recording with audio
  • Bidirectional audio in browser
  • VoIP telephony (audio, alert)
  • Customized voice messages
  • Privacy zone scheduling
  • Temperature sensors and shock detector
  • Playback and QuadView via web browser
  • Time and event control/flexible event logic
  • Event video and image transfer via FTP and email
  • Weekly schedules for recordings and actions
  • Master/slave communication
  • Animated logos on image
  • Remote alarm notification
  • MxMessageSystem for sending and receiving MxMessages
  • Video analysis includes video motion detector and MxActivitySensor
  • MxManagementCenter VMS for Windows & Mac
  • MOBOTIX app for iOS 6.0 or higher
  • -22°F minimum cold start
  • Mean time between failures greater than 80,000 hours
  • EMC and FCC certified

2x 6MP Day Sensor Module with Hemispheric B016 Lens (White)

The white 6MP Day Sensor Module with B016 from MOBOTIX features an integrated lens, image sensor, and microphone. This sensor module comes preassembled for ceiling or wall mounting and has a quick connector for easy connection to MOBOTIX DualFlex or AllroundDual camera modules. It is IP66-rated for protection against dust and water, making it suitable for outdoor use.

  • 6MP day moonlight sensor
  • B016 lens with f/2.0 aperture
  • Built-in microphone

S16 camera module (body)

• ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG

• 2x sensor module with HD premium lens B016 (f/2.0, horiz. image angle 180°) and Moonlight sensor day, 6MP (3072 x 2048)

• 2x sensor cable 2 m/6.6 ft

• 2x extension set

• 1x ethernet patch cable 0.5 m/1.65 ft

• 2x replacement dome

• IP66
