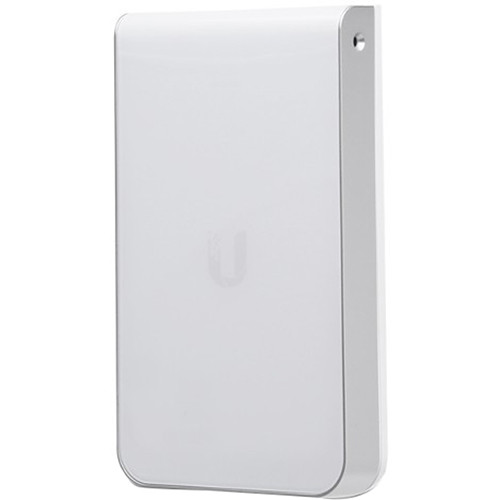

Ubiquiti UniFi AP IW HD (In Wall) is an 802.11ac Wave2 MU-MIMO access point that is ideal for hospitality or multi-room deployments. The UAP-IW-HD provides 4x4 MIMO at 5GHz and 2x2 MIMO at 2.4GHz for a combined PHY rate of 2033Mbps.
The UAP-IW-HD has a Gigabit PoE port on the back and four Gigabit ethernet ports on the base. Port 1 also provides PoE out.
The UAP-IW-HD is powered by 802.3af PoE. If PoE passthrough is being utilised, 802.3at PoE is required.
This item comes without PoE injectors and must be bought seperately if you are not using them with a PoE Switch.
Data Throughput Rate, 2.4GHz : 300 Mbps
Max BSSID : 8
Data Throughput Rate, 5GHz : 1733 Mbps
10/100/1000 x 3
10/100/1000 PoE In x 1
10/100/1000 PoE Out x 1
MIMO 4x4 (5GHz) and 2x2 (2.4GHz)
Wireless Standards 802.11a/b/g/n/ac/ac-wave2
Gain 2 6 dBi
Gain 1.8 and 3.4 dBi
1x Mounting Plate
1x Back Plate
4x Wall-Mount Screws
2x Torx Screws
2x Phillips Screws
1x Torx Security Screw
1x Phillips Security Screw
