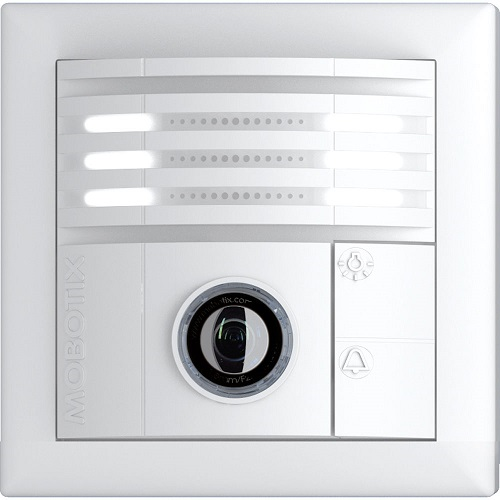

MOBOTIX MX-T26B-6D016 White Weatherproof IP Video Door Station Camera, 6MP, 180 Degree View

Hemispheric IP door station camera with 6 Megapixel Sensor

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Hemispheric Video Technology forms the core of this high-resolution IP Video Door Station, which can seamlessly record the entire entry area thanks to a 360° fisheye lens. When the doorbell rings, a video connection is established to a remote station anywhere in the world for two-way communication and opening of the door. The modular system enables the door to be opened securely without a key via an access code, RFID transponder and smartphone.

The high-resolution, hemispheric IP Video Door Station from MOBOTIX is an innovative, powerful solution that is easy to install. The T26 is based on the VoIP/SIP Video Intercom standard. All the modules offered for outdoor areas are weatherproof and maintenance-free and can be used in temperatures ranging from -30°C to 50°C (-22°F to 140°F).

• ONVIF-S compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
• HD premium fisheye lens B016 (focal length 1.6mm, f/2.0, 180° x 180°)
• Max. image size: 6MP (3072 x 2048)
• IP65, -30 to 50°C
• Internal DVR: 4 GB microSD
• LED lighting strips, two buttons (doorbell, outdoor light), temperature sensor, shock detector
• MxActivitySensor, MxAnalytics, ethernet patch cable 0.5 m/1.6 ft
• Interfaces: Ethernet 10/100 (RJ45 and LSA), MxBus, USB
• Color: White

The hemispheric 360° lens covers the entire entrance area. No blind spots from wall to wall, from floor to ceiling. The camera can record events automatically, for example, when someone rings the doorbell or something moves in front of the door. The camera module can be used with a remote station as a compact basic Video Door Station, thanks to the integrated doorbell and light button. The 4 GB micro SD card can save 250 one-minute video clips or 60,000 individual VGA images.

Free App MxBell 2.0 makes the T26B Door Station even smarter.
Do not miss a visitor thanks to push notification! MxBell displays the doorbell message of the new T26 IP Video Door Station on the smartphone or tablet. Open the door with it and use the intercom function. Check the last door station and camera recordings in Playback view. With automatic camera detection, secure remote connection over SSL and display of connection status. MxBell 2.0 is available for free from the App Store and the Google Play Store (iOS 8 / Android 4.4+).

Add optional components:

BellRFID: A module for one to five bell buttons.
The weatherproof BellRFID bell button module enables keyless entry via RFID transponder. The six different bell button sets can be easily replaced as required. Visitors can tap to leave messages,
which can then be played back locally or remotely by residents.

KeypadRFID: Open door via PIN code or RFID card.
The weatherproof KeypadRFID module enables keyless entry via RFID transponder and / or number combination, ringing at any number of remote stations via programmable key combinations and
configuration of the Door Station without a PC. Includes mailbox function and transponder in check card format.

Info Module: Can also be connected via two-wire cable.
The info module features a backlit house number field and can optionally include a Mx2wire+ unit. This unit is needed if the outdoor station is to be connected to the PoE switch with an existing bell
wire via a second Mx2wire+ Indoor Unit instead of directly using an Ethernet cable.

MX-DoorMaster: Door opener module with battery power backup.
The optional MX-DoorMaster with access code memory makes it impossible to open the door by forcibly separating and bridging the connection cables. A built-in rechargeable battery supplies
both the electric door opener and the access module in the outdoor station and guarantees keyless access by transponder / code even in the event of a power failure for up to 60 hours. In addition, the
MX-DoorMaster also serves as a doorbell indoors.
